Perfiles de Acero Taxqueña — distribución y venta de acero estructural y materiales para la construcción en la Ciudad de México
Catálogo inteligente
¿Qué material estás buscando?
Encuentra materiales, medidas y especificaciones usando únicamente nuestro catálogo actual.
Busca por ejemplo:
Catálogo
Productos

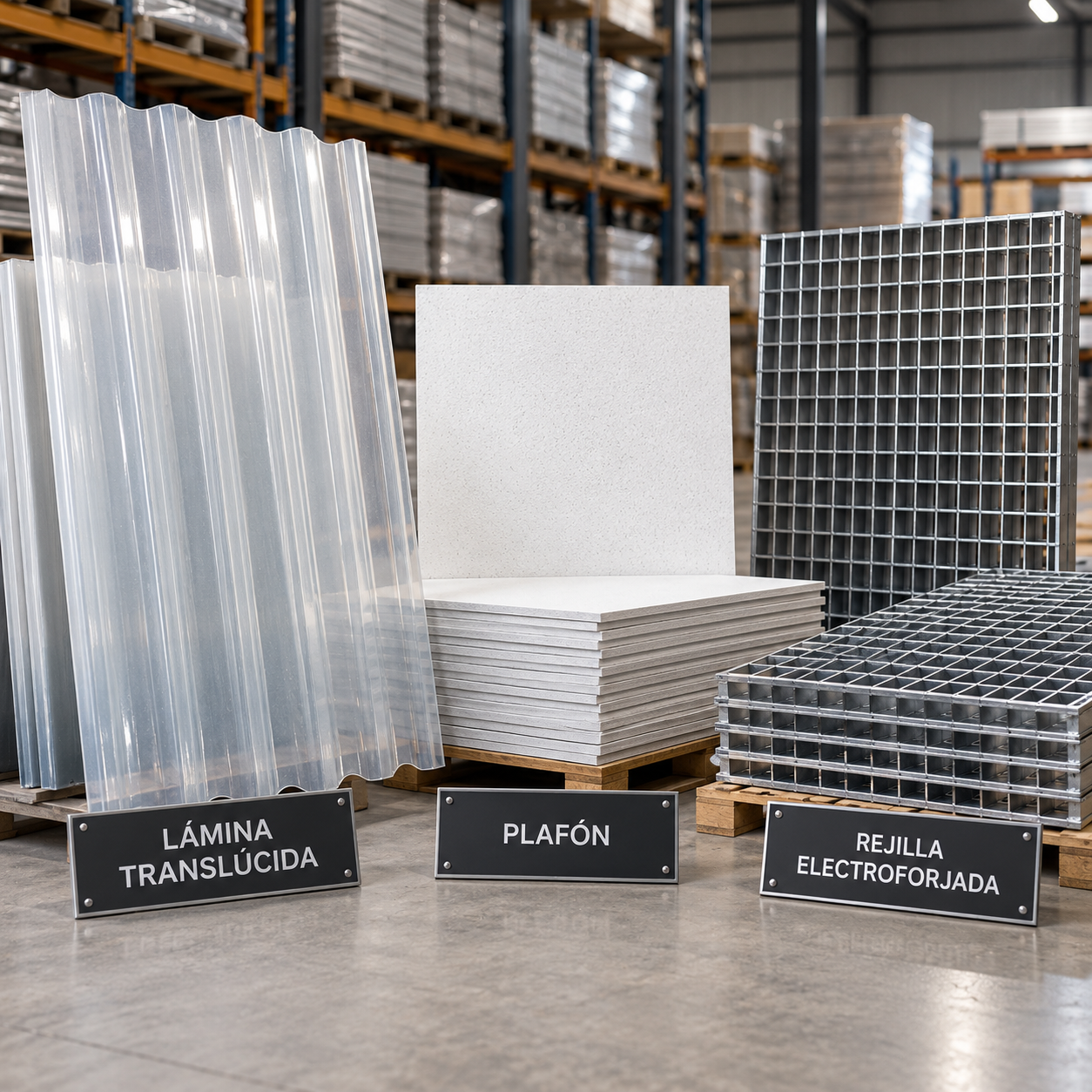

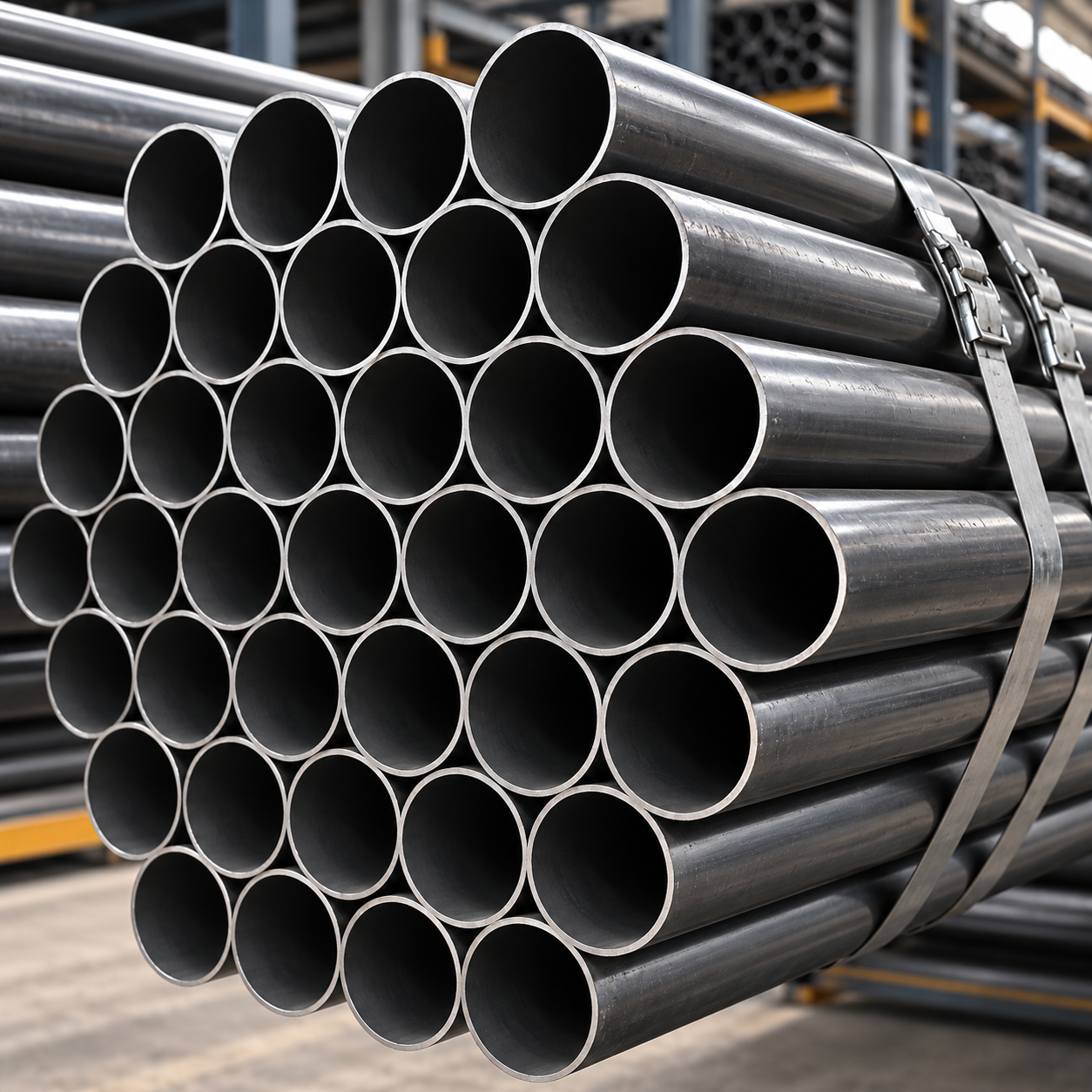

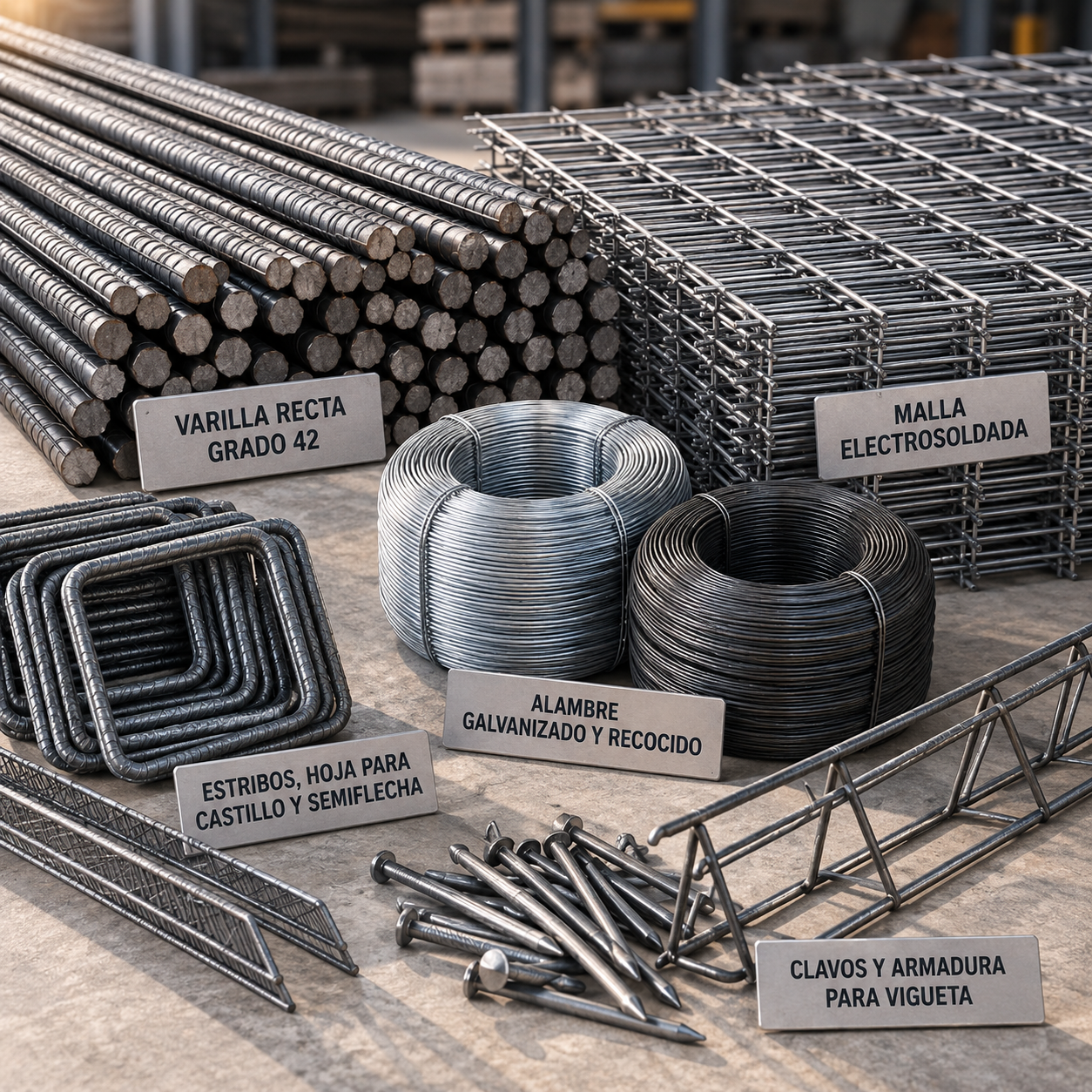

Amplia gama de perfiles, láminas, tubería y materiales para la construcción. Consulta las medidas y especificaciones de cada línea; surtimos desde una pieza hasta toneladas.
Fichas técnicas
Tablas de medidas
Consulta las medidas, calibres, espesores, pesos y largos disponibles de cada línea de producto. Los valores son de referencia; confirma existencias y medidas exactas con tu asesor.

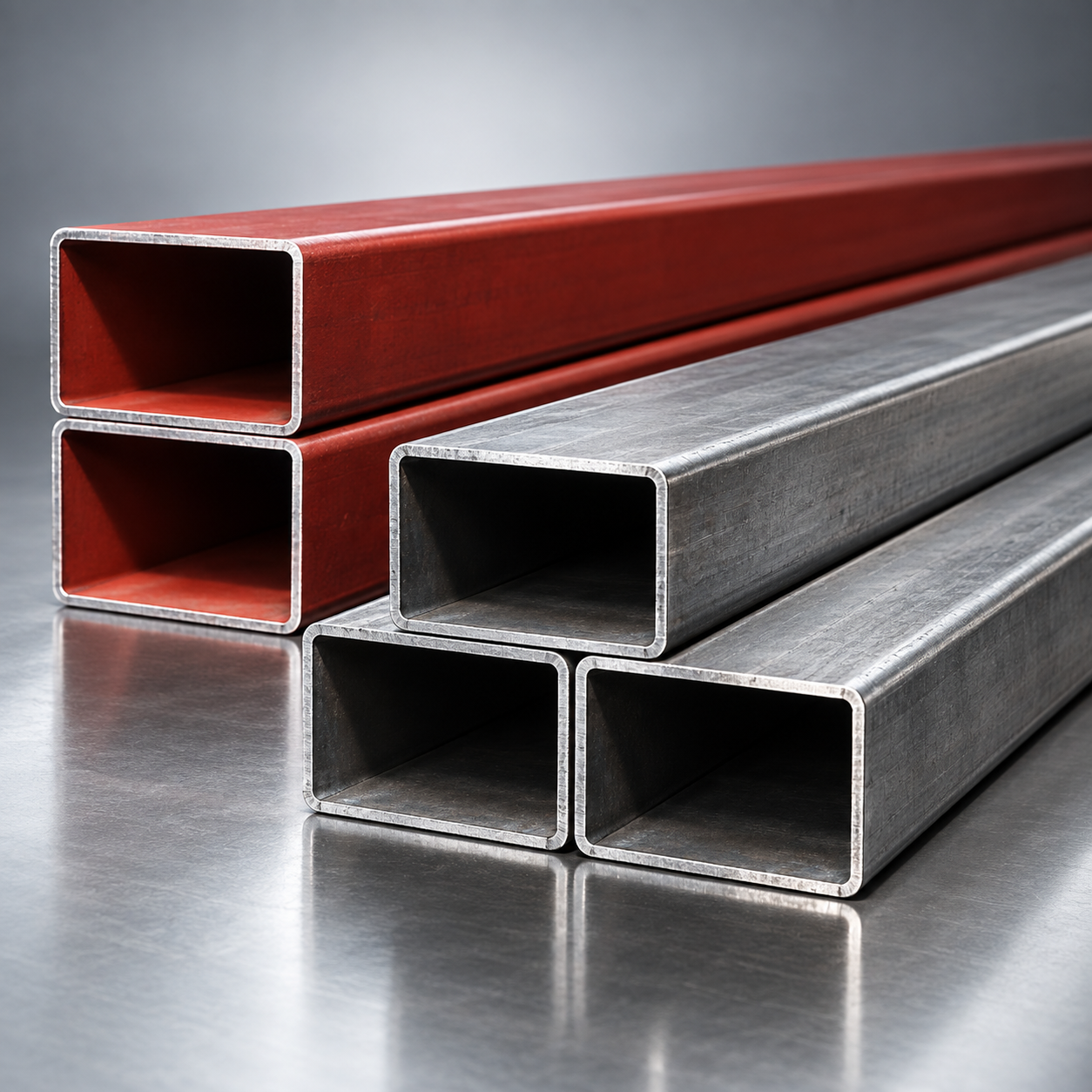

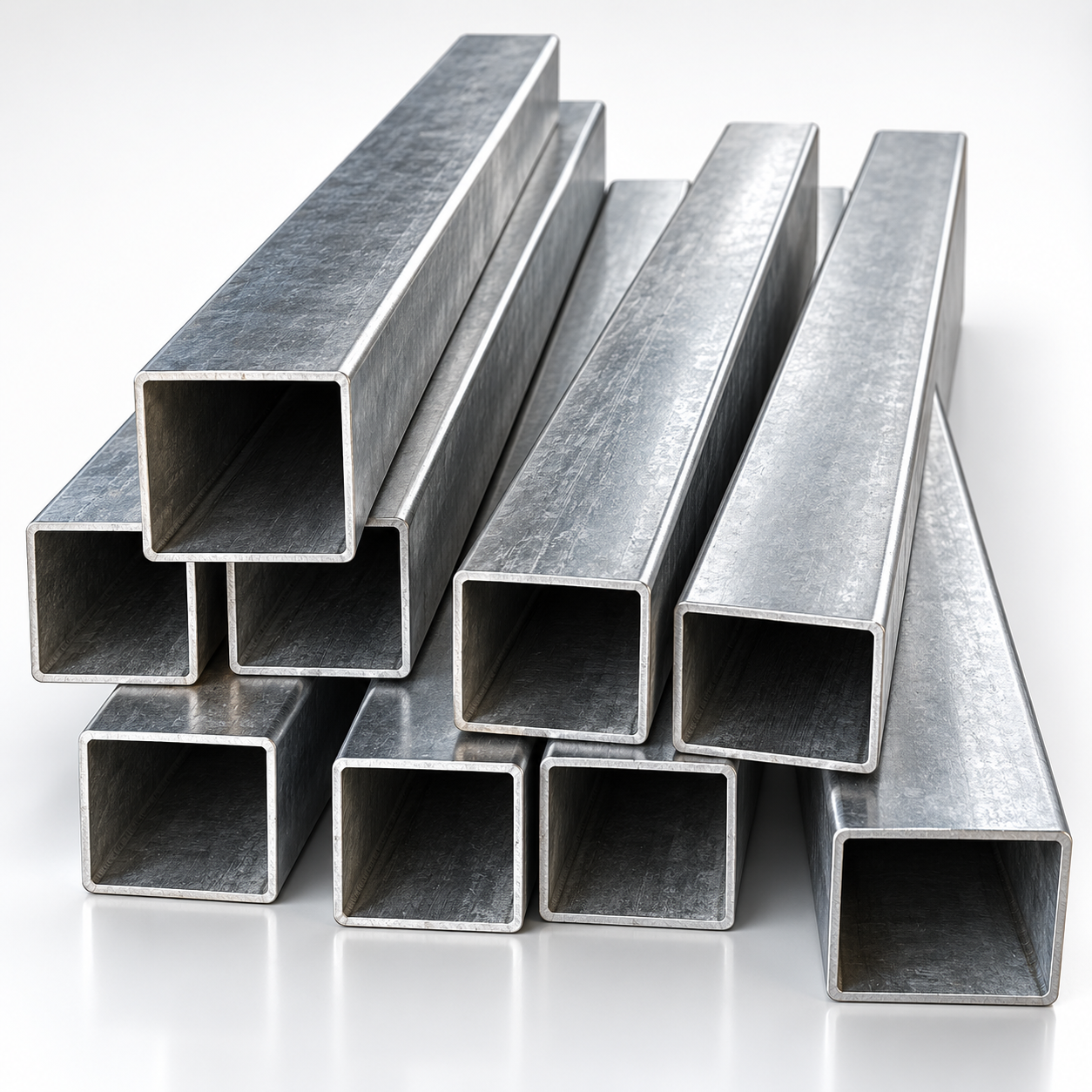

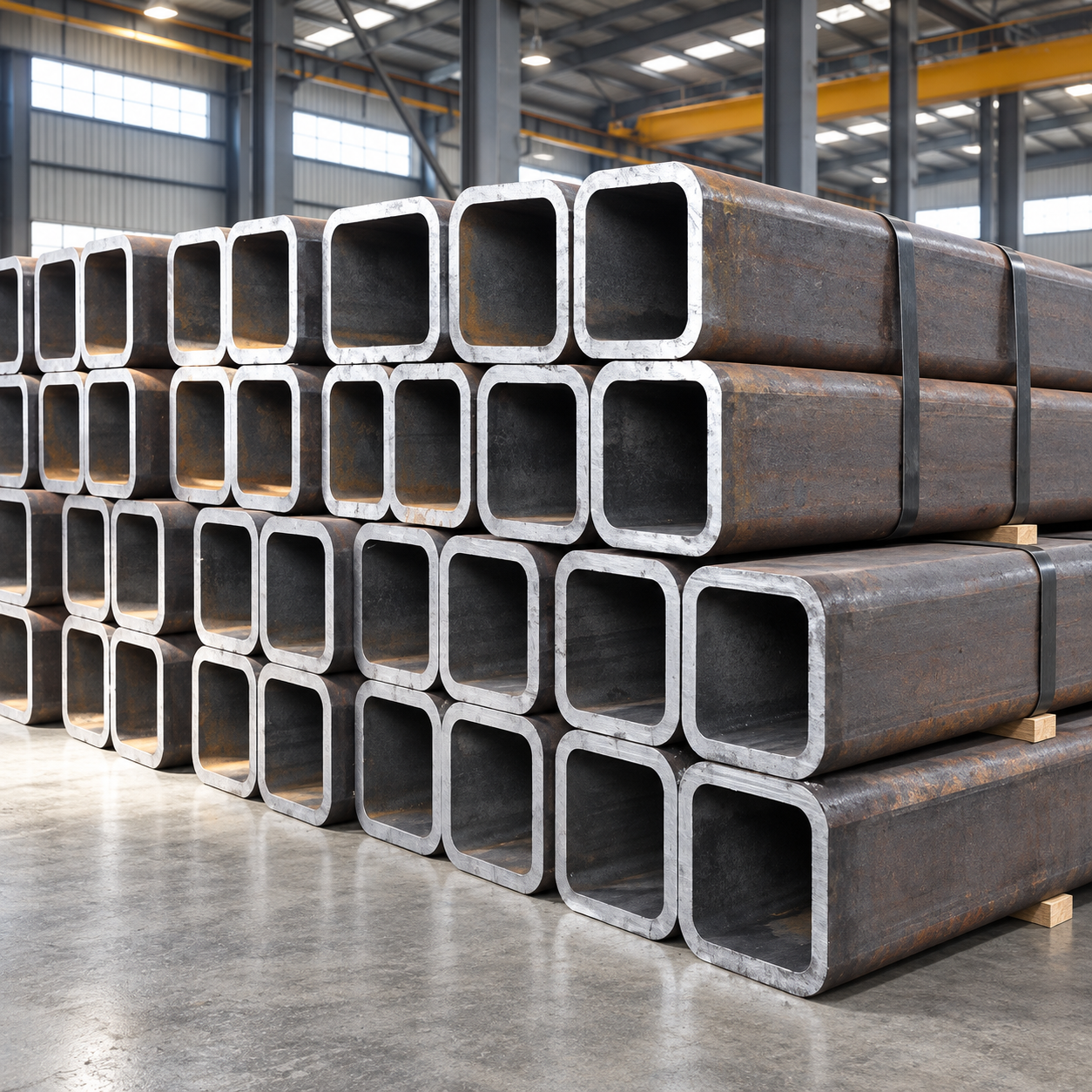

Perfiles de acero huecos, cuadrangulares y rectangulares. Acero grado B en calibres 11 y más gruesos, ideales para estructuras ligeras, herrería y armados metálicos.
PTR Cuadrado
| Medidas Pulg. | Medidas mm. | Calibre | Espesor Pulg. | Espesor mm. | Longitud m. | Peso kg/m |
|---|---|---|---|---|---|---|
| 3/4 x 3/4 | 19.05 x 19.05 | 14 | 0.075 | 1.9 | 6 | 1.06 |
| 1 x 1 | 25.4 x 25.4 | 14 | 0.075 | 1.9 | 6 | 1.46 |
| 1 x 1 | 25.4 x 25.4 | 13 | 0.09 | 2.28 | 6 | 1.66 |
| 1 x 1 | 25.4 x 25.4 | 12 | 0.105 | 2.67 | 6 | 1.95 |
| 1 x 1 | 25.4 x 25.4 | 11 | 0.12 | 3.04 | 6 | 1.97 |
| 1 x 1 | 25.4 x 25.4 | 10 | 0.135 | 3.42 | 6 | 2.13 |
| 1 1/4 x 1 1/4 | 31.75 x 31.75 | 14 | 0.075 | 1.9 | 6 | 1.85 |
| 1 1/4 x 1 1/4 | 31.75 x 31.75 | 12 | 0.105 | 2.67 | 6 | 1.95 |
| 1 1/4 x 1 1/4 | 31.75 x 31.75 | 11 | 0.12 | 3.04 | 6 | 1.97 |
| 1 1/4 x 1 1/4 | 31.75 x 31.75 | *10 | 0.135 | 3.42 | 6 | 3.2 |
| 1 1/2 x 1 1/2 | 38.1 x 38.1 | 14 | 0.075 | 1.9 | 6 | 2.24 |
| 1 1/2 x 1 1/2 | 38.1 x 38.1 | 12 | 0.105 | 2.67 | 6 | 3.07 |
| 1 1/2 x 1 1/2 | 38.1 x 38.1 | 11 | 0.12 | 3.04 | 6 | 3.16 |
| 1 1/2 x 1 1/2 | 38.1 x 38.1 | 10 | 0.135 | 3.42 | 6 | 3.49 |
| *1 3/4 x 1 3/4 | 44.45 x 44.45 | 14 | 0.075 | 1.9 | 6 | 2.64 |
| 2 x 2 | 50.8 x 50.8 | 14 | 0.075 | 1.9 | 6 | 3.03 |
| 2 x 2 | 50.8 x 50.8 | 12 | 0.105 | 2.67 | 6 | 4.17 |
| 2 x 2 | 50.8 x 50.8 | 11 | 0.12 | 3.04 | 6 | 4.38 |
| 2 x 2 | 50.8 x 50.8 | 10 | 0.135 | 3.42 | 6 | 4.86 |
| 2 x 2 | 50.8 x 50.8 | 3/16" | 0.188 | 4.76 | 6.1 | 6.43 |
| 2 x 2 | 50.8 x 50.8 | 1/4" | 0.25 | 6.35 | 6.1 | 8.04 |
| *2 1/4 x 2 1/4 | 57.15 x 57.15 | 14 | 0.075 | 1.9 | 6 | 3.15 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 16 | 0.059 | 1.49 | 6 | 2.95 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 14 | 0.075 | 1.9 | 6 | 3.82 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 13 | 0.089 | 2.26 | 6 | 4.38 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 12 | 0.105 | 2.67 | 6 | 5.27 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 11 | 0.12 | 3.04 | 6 | 5.59 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 10 | 0.135 | 3.42 | 6 | 6.22 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | *9 | 0.15 | 3.8 | 6 | 6.76 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | 3/16" | 0.188 | 4.76 | 6.1 | 8.33 |
| 2 1/2 x 2 1/2 | 63.5 x 63.5 | *1/4" | 0.25 | 6.35 | 6.1 | 10.57 |
| 3 x 3 | 76.2 x 76.2 | 14 | 0.075 | 1.9 | 6 | 4.61 |
| 3 x 3 | 76.2 x 76.2 | 12 | 0.105 | 2.67 | 6.1 | 6.38 |
| 3 x 3 | 76.2 x 76.2 | 11 | 0.12 | 3.04 | 6 | 6.8 |
| 3 x 3 | 76.2 x 76.2 | 10 | 0.135 | 3.42 | 6 | 7.54 |
| 3 x 3 | 76.2 x 76.2 | 9 | 0.15 | 3.8 | 6 | 8.26 |
| 3 x 3 | 76.2 x 76.2 | 3/16" | 0.188 | 4.76 | 6.1 | 10.24 |
| 3 x 3 | 76.2 x 76.2 | 1/4" | 0.25 | 6.35 | 6.1 | 13.1 |
| 3 1/2 x 3 1/2 | 88.9 x 88.9 | 14 | 0.075 | 1.9 | 6 | 5.11 |
| 3 1/2 x 3 1/2 | 88.9 x 88.9 | 11 | 0.12 | 3.04 | 6 | 8.02 |
| 3 1/2 x 3 1/2 | 88.9 x 88.9 | 9 | 0.15 | 3.8 | 6 | 9.75 |
| 3 1/2 x 3 1/2 | 88.9 x 88.9 | 3/16" | 0.188 | 4.76 | 6.1 | 12.14 |
| 3 1/2 x 3 1/2 | 88.9 x 88.9 | 1/4" | 0.25 | 6.35 | 6.1 | 15.63 |
| 4 x 4 | 101.6 x 101.6 | 14 | 0.075 | 1.9 | 6 | 6.19 |
| 4 x 4 | 101.6 x 101.6 | 11 | 0.12 | 3.04 | 6 | 9.23 |
| 4 x 4 | 101.6 x 101.6 | 10 | 0.135 | 3.42 | 6 | 10.24 |
| 4 x 4 | 101.6 x 101.6 | 9 | 0.15 | 3.8 | 6 | 11.25 |
| 4 x 4 | 101.6 x 101.6 | 3/16" | 0.188 | 4.76 | 6.1 | 14.04 |
| 4 x 4 | 101.6 x 101.6 | 1/4" | 0.25 | 6.35 | 6.1 | 18.16 |
| *4 1/2 x 4 1/2 | 114.3 x 114.3 | 11 | 0.12 | 3.04 | 6 | 10.24 |
| *4 1/2 x 4 1/2 | 114.3 x 114.3 | 3/16" | 0.188 | 4.76 | 6.1 | 15.9 |
| *4 1/2 x 4 1/2 | 114.3 x 114.3 | 1/4" | 0.25 | 6.35 | 6.1 | 20.67 |
| 5 x 5 | 127 x 127 | 11 | 0.12 | 3.04 | 6 | 12.13 |
| 5 x 5 | 127 x 127 | 9 | 0.15 | 3.8 | 6 | 14.22 |
| 5 x 5 | 127 x 127 | 3/16" | 0.188 | 4.76 | 6.1 | 17.85 |
| 5 x 5 | 127 x 127 | 1/4" | 0.25 | 6.35 | 6.1 | 23.22 |
| 5 x 5 | 127 x 127 | 5/16" | 0.312 | 7.92 | 12.2 | 28.39 |
| 5 x 5 | 127 x 127 | 3/8" | 0.375 | 9.53 | 12.2 | 33.29 |
PTR Rectangular
| Medidas Pulg. | Medidas mm. | Calibre | Espesor Pulg. | Espesor mm. | Longitud m. | Peso kg/m |
|---|---|---|---|---|---|---|
| 2 x 1 | 50.8 x 25.4 | *14 | 0.075 | 1.9 | 6 | 2.24 |
| 2 x 1 | 50.8 x 25.4 | *11 | 0.12 | 3.04 | 6 | 3.16 |
| 2 1/2 x 1 1/2 | 63.5 x 38.1 | *14 | 0.075 | 1.9 | 6 | 3.03 |
| 2 1/2 x 1 1/2 | 63.5 x 38.1 | 12 | 0.105 | 2.67 | 6 | 4.16 |
| 3 x 1 1/2 | 76.2 x 38.1 | *14 | 0.075 | 1.9 | 6 | 3.43 |
| 3 x 2 | 76.2 x 50.8 | *14 | 0.075 | 1.9 | 6 | 3.82 |
| 3 x 2 | 76.2 x 50.8 | *11 | 0.12 | 3.04 | 6 | 5.59 |
| 3 x 2 | 76.2 x 50.8 | 10 | 0.135 | 3.42 | 6 | 6.22 |
| 3 x 2 | 76.2 x 50.8 | 9 | 0.15 | 3.8 | 6 | 6.75 |
| 3 x 2 | 76.2 x 50.8 | 3/16" | 0.188 | 4.76 | 6.1 | 8.33 |
| 3 x 2 | 76.2 x 50.8 | 1/4" | 0.25 | 6.35 | 6.1 | 10.57 |
| 4 x 1 1/2 | 101.6 x 38.1 | *14 | 0.075 | 1.9 | 6 | 4.22 |
| 4 x 2 | 101.6 x 50.8 | *14 | 0.075 | 1.9 | 6 | 4.61 |
| 4 x 2 | 101.6 x 50.8 | *11 | 0.12 | 3.04 | 6 | 6.81 |
| 4 x 2 | 101.6 x 50.8 | 9 | 0.15 | 3.8 | 6 | 8.26 |
| 4 x 2 | 101.6 x 50.8 | 3/16" | 0.188 | 4.76 | 6.1 | 10.24 |
| 4 x 2 | 101.6 x 50.8 | *1/4" | 0.25 | 6.35 | 6.1 | 13.1 |
| 4 x 3 | 101.6 x 76.2 | *14 | 0.075 | 1.9 | 6 | 5.4 |
| 4 x 3 | 101.6 x 76.2 | *11 | 0.12 | 3.04 | 6 | 8.02 |
| 4 x 3 | 101.6 x 76.2 | 9 | 0.15 | 3.8 | 6 | 9.75 |
| 4 x 3 | 101.6 x 76.2 | 3/16" | 0.188 | 4.76 | 6.1 | 12.14 |
| 4 x 3 | 101.6 x 76.2 | 1/4" | 0.25 | 6.35 | 6.1 | 15.63 |
| 5 x 3 | 127 x 76.2 | *14 | 0.075 | 1.9 | 6.1 | 5.87 |
| 5 x 3 | 127 x 76.2 | *11 | 0.12 | 3.04 | 6.1 | 9.6 |
| 5 x 3 | 127 x 76.2 | 10 | 0.135 | 3.42 | 6.1 | 10.24 |
| 5 x 3 | 127 x 76.2 | 9 | 0.15 | 3.8 | 6.1 | 11.24 |
| 5 x 3 | 127 x 76.2 | 3/16" | 0.188 | 4.76 | 6.1 | 14 |
| 5 x 3 | 127 x 76.2 | 1/4" | 0.25 | 6.35 | 6.1 | 18.15 |
| 6 x 2 | 152.4 x 50.8 | *14 | 0.075 | 1.9 | 6 | 5.87 |
| 6 x 2 | 152.4 x 50.8 | *11 | 0.12 | 3.04 | 6 | 9.6 |
| 6 x 2 | 152.4 x 50.8 | 10 | 0.135 | 3.42 | 6.1 | 10.24 |
| 6 x 2 | 152.4 x 50.8 | 9 | 0.15 | 3.8 | 6.1 | 11.24 |
| 6 x 2 | 152.4 x 50.8 | 3/16" | 0.188 | 4.76 | 6.1 | 14 |
| 6 x 2 | 152.4 x 50.8 | 1/4" | 0.25 | 6.35 | 6.1 | 18.15 |
| 6 x 3 | 152.4 x 76.2 | *14 | 0.075 | 1.9 | 6.1 | 6.63 |
| 6 x 3 | 152.4 x 76.2 | *11 | 0.12 | 3.04 | 6 | 10.24 |
| 6 x 3 | 152.4 x 76.2 | 10 | 0.135 | 3.42 | 6.1 | 11.52 |
| 6 x 3 | 152.4 x 76.2 | 9 | 0.15 | 3.8 | 6.1 | 13.02 |
| 6 x 3 | 152.4 x 76.2 | 3/16" | 0.188 | 4.76 | 6.1 | 15.9 |
| 6 x 3 | 152.4 x 76.2 | 1/4" | 0.25 | 6.35 | 6.1 | 20.67 |
| 6 x 4 | 152.4 x 101.6 | *14 | 0.075 | 1.9 | 6.1 | 7.39 |
| 6 x 4 | 152.4 x 101.6 | *11 | 0.12 | 3.04 | 6 | 11.66 |
| 6 x 4 | 152.4 x 101.6 | 10 | 0.135 | 3.42 | 6.1 | 13.18 |
| 6 x 4 | 152.4 x 101.6 | 9 | 0.15 | 3.8 | 6.1 | 14.22 |
| 6 x 4 | 152.4 x 101.6 | 8 | 0.164 | 4.18 | 6.1 | 16.13 |
| 6 x 4 | 152.4 x 101.6 | 3/16" | 0.188 | 4.76 | 6.1 | 17.85 |
| 6 x 4 | 152.4 x 101.6 | 1/4" | 0.25 | 6.35 | 6.1 | 23.22 |
| 6 x 4 | 152.4 x 101.6 | 3/8" | 0.375 | 9.5 | 12.2 | 33.27 |

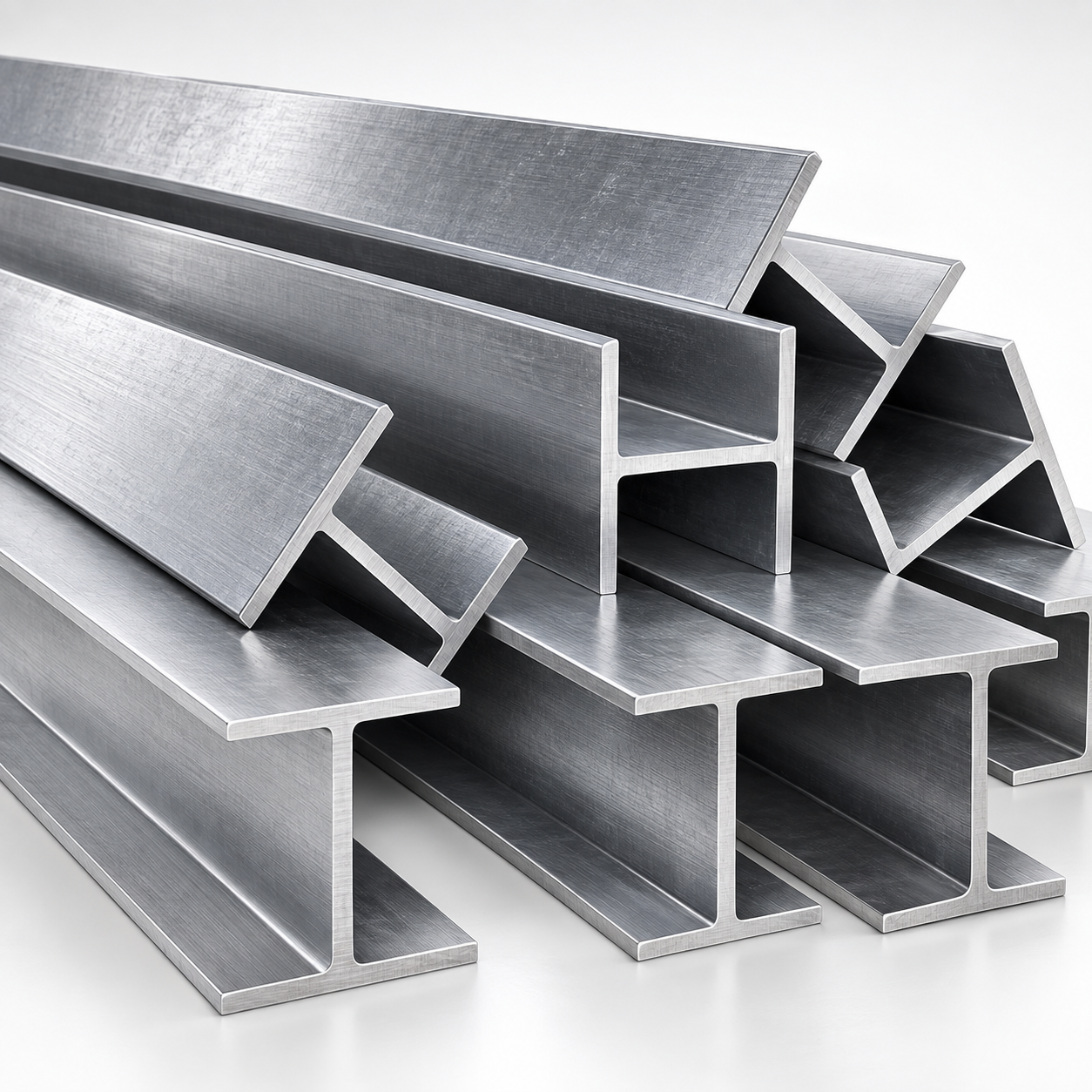

Manejamos viga IPR (patín ancho) e IPS (tipo americano), disponible en grado Dual A-36 / A-572-50 y ASTM A-992, en diferentes pesos y medidas.
Viga IPR
| Nominal pulg. (d x bf) | Nominal mm (d x bf) | Peso kg/m | Peso lb/pie | Peralte d pulg. | Peralte d mm | Patín ancho bf pulg. | Patín ancho bf mm | Patín espesor tf pulg. | Patín espesor tf mm | Alma espesor tw pulg. | Alma espesor tw mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 x 4 | 101.6 x 101.6 | 19.3 | 13 | 4.16 | 106 | 4.06 | 103 | 0.35 | 8.8 | 0.28 | 7.11 |
| 6 x 4 | 152.4 x 101.6 | 12.6 | 8.5 | 5.83 | 148 | 3.94 | 100 | 0.2 | 5 | 0.17 | 4.3 |
| 6 x 4 | 152.4 x 101.6 | 13.4 | 9 | 5.9 | 150 | 3.94 | 100 | 0.22 | 5.5 | 0.17 | 4.3 |
| 6 x 4 | 152.4 x 101.6 | 17.9 | 12 | 6.03 | 153 | 4 | 102 | 0.28 | 7.1 | 0.23 | 5.8 |
| 6 x 4 | 152.4 x 101.6 | 23.8 | 16 | 6.28 | 160 | 4.03 | 102 | 0.41 | 10.3 | 0.26 | 6.6 |
| 6 x 6 | 152.4 x 152.4 | 22.3 | 15 | 5.99 | 152 | 5.99 | 152 | 0.26 | 6.6 | 0.23 | 5.8 |
| 6 x 6 | 152.4 x 152.4 | 29.8 | 20 | 6.2 | 157 | 6.02 | 153 | 0.37 | 9.3 | 0.26 | 6.6 |
| 6 x 6 | 152.4 x 152.4 | 37.2 | 25 | 6.38 | 162 | 6.08 | 154 | 0.46 | 11.6 | 0.32 | 8.1 |
| 8 x 4 | 203.2 x 101.6 | 14.9 | 10 | 7.89 | 200 | 3.94 | 100 | 0.21 | 5.2 | 0.17 | 4.3 |
| 8 x 4 | 203.2 x 101.6 | 19.3 | 13 | 7.99 | 203 | 4 | 102 | 0.26 | 6.5 | 0.23 | 5.8 |
| 8 x 4 | 203.2 x 101.6 | 22.3 | 15 | 8.11 | 206 | 4.02 | 102 | 0.32 | 8 | 0.25 | 6.2 |
| 8 x 5-1/4 | 203.2 x 133.4 | 26.8 | 18 | 8.14 | 207 | 5.25 | 133 | 0.33 | 8.4 | 0.23 | 5.8 |
| 8 x 5-1/4 | 203.2 x 133.4 | 31.2 | 21 | 8.28 | 210 | 5.27 | 134 | 0.4 | 10.2 | 0.25 | 6.4 |
| 8 x 6-1/2 | 203.2 x 165.1 | 35.7 | 24 | 7.93 | 201 | 6.5 | 165 | 0.4 | 10.2 | 0.25 | 6.2 |
| 8 x 6-1/2 | 203.2 x 165.1 | 41.7 | 28 | 8.06 | 205 | 6.54 | 166 | 0.47 | 11.8 | 0.29 | 7.2 |
| 8 x 8 | 203.2 x 203.2 | 46.1 | 31 | 8 | 203 | 8 | 203 | 0.44 | 11 | 0.29 | 7.2 |
| 8 x 8 | 203.2 x 203.2 | 52.1 | 35 | 8.12 | 206 | 8.02 | 204 | 0.5 | 12.6 | 0.31 | 7.9 |
| 8 x 8 | 203.2 x 203.2 | 59.5 | 40 | 8.25 | 210 | 8.07 | 205 | 0.56 | 14.2 | 0.36 | 9.1 |
| 8 x 8 | 203.2 x 203.2 | 71.4 | 48 | 8.5 | 216 | 8.11 | 206 | 0.69 | 17.4 | 0.4 | 10.2 |
| 8 x 8 | 203.2 x 203.2 | 86.3 | 58 | 8.75 | 222 | 8.22 | 209 | 0.81 | 20.6 | 0.51 | 13 |
| 10 x 4 | 254 x 101.6 | 17.9 | 12 | 9.87 | 251 | 3.96 | 101 | 0.21 | 5.3 | 0.19 | 4.8 |
| 10 x 4 | 254 x 101.6 | 22.3 | 15 | 9.99 | 254 | 4 | 102 | 0.27 | 6.9 | 0.23 | 5.8 |
| 10 x 4 | 254 x 101.6 | 25.3 | 17 | 10.11 | 257 | 4.01 | 102 | 0.33 | 8.4 | 0.24 | 6.1 |
| 10 x 4 | 254 x 101.6 | 28.3 | 19 | 10.24 | 260 | 4.02 | 102 | 0.4 | 10 | 0.25 | 6.4 |
| 10 x 5-3/4 | 254 x 146 | 32.7 | 22 | 10.17 | 258 | 5.75 | 146 | 0.36 | 9.1 | 0.24 | 6.1 |
| 10 x 5-3/4 | 254 x 146 | 38.7 | 26 | 10.33 | 262 | 5.77 | 147 | 0.44 | 11.2 | 0.26 | 6.6 |
| 10 x 5-3/4 | 254 x 146 | 44.6 | 30 | 10.47 | 266 | 5.81 | 148 | 0.51 | 13 | 0.3 | 7.6 |
| 10 x 8 | 254 x 203.2 | 49.1 | 33 | 9.73 | 247 | 7.96 | 202 | 0.44 | 11 | 0.29 | 7.4 |
| 10 x 8 | 254 x 203.2 | 58 | 39 | 9.92 | 252 | 7.99 | 203 | 0.53 | 13.5 | 0.32 | 8 |
| 10 x 8 | 254 x 203.2 | 67 | 45 | 10.1 | 257 | 8.02 | 204 | 0.62 | 15.7 | 0.35 | 8.9 |
| 10 x 10 | 254 x 254 | 72.9 | 49 | 9.98 | 253 | 10 | 254 | 0.56 | 14.2 | 0.34 | 8.6 |
| 10 x 10 | 254 x 254 | 80.4 | 54 | 10.09 | 256 | 10.03 | 255 | 0.62 | 15.6 | 0.37 | 9.4 |
| 10 x 10 | 254 x 254 | 89.3 | 60 | 10.22 | 260 | 10.08 | 256 | 0.68 | 17.3 | 0.42 | 10.7 |
| 10 x 10 | 254 x 254 | 101.1 | 68 | 10.4 | 264 | 10.13 | 257 | 0.77 | 19.6 | 0.47 | 11.9 |
| 10 x 10 | 254 x 254 | 114.57 | 77 | 10.6 | 269 | 10.19 | 259 | 0.87 | 22.1 | 0.53 | 13.5 |
| 10 x 10 | 254 x 254 | 130.94 | 88 | 10.84 | 275 | 10.265 | 261 | 0.99 | 25.1 | 0.605 | 15.4 |
| 10 x 10 | 254 x 254 | 148.8 | 100 | 11.1 | 282 | 10.34 | 263 | 1.12 | 28.4 | 0.68 | 17.3 |
| 10 x 10 | 254 x 254 | 166.65 | 112 | 11.36 | 289 | 10.415 | 265 | 1.25 | 31.8 | 0.755 | 19.2 |
| 12 x 4 | 304.8 x 101.6 | 20.8 | 14 | 11.91 | 303 | 3.97 | 101 | 0.23 | 5.7 | 0.2 | 5.1 |
| 12 x 4 | 304.8 x 101.6 | 23.8 | 16 | 11.99 | 305 | 3.99 | 101 | 0.27 | 6.7 | 0.22 | 5.6 |
| 12 x 4 | 304.8 x 101.6 | 28.3 | 19 | 12.16 | 309 | 4.01 | 102 | 0.35 | 8.9 | 0.24 | 6 |
| 12 x 4 | 304.8 x 101.6 | 32.7 | 22 | 12.31 | 313 | 4.03 | 102 | 0.43 | 10.8 | 0.26 | 6.6 |
| 12 x 6-1/2 | 304.8 x 165.1 | 38.7 | 26 | 12.22 | 310 | 6.49 | 165 | 0.38 | 9.7 | 0.23 | 5.8 |
| 12 x 6-1/2 | 304.8 x 165.1 | 44.6 | 30 | 12.34 | 313 | 6.52 | 166 | 0.44 | 11.2 | 0.26 | 6.6 |
| 12 x 6-1/2 | 304.8 x 165.1 | 52.1 | 35 | 12.5 | 318 | 6.56 | 167 | 0.52 | 13.2 | 0.3 | 7.6 |
| 12 x 8 | 304.8 x 203.2 | 59.5 | 40 | 11.94 | 303 | 8.01 | 203 | 0.52 | 13.1 | 0.3 | 7.5 |
| 12 x 8 | 304.8 x 203.2 | 67 | 45 | 12.06 | 306 | 8.05 | 204 | 0.58 | 14.6 | 0.34 | 8.5 |
| 12 x 8 | 304.8 x 203.2 | 74.4 | 50 | 12.19 | 310 | 8.08 | 205 | 0.64 | 16.3 | 0.37 | 9.4 |
| 12 x 10 | 304.8 x 254 | 78.9 | 53 | 12.06 | 306 | 10 | 254 | 0.58 | 14.6 | 0.35 | 8.8 |
| 12 x 10 | 304.8 x 254 | 86.3 | 58 | 12.19 | 310 | 10.01 | 254 | 0.64 | 16.3 | 0.36 | 9.1 |
| 12 x 12 | 304.8 x 304.8 | 96.7 | 65 | 12.12 | 308 | 12 | 305 | 0.61 | 15.4 | 0.39 | 9.9 |
| 12 x 12 | 304.8 x 304.8 | 107.1 | 72 | 12.25 | 311 | 12.04 | 306 | 0.67 | 17 | 0.43 | 10.9 |
| 12 x 12 | 304.8 x 304.8 | 117.6 | 79 | 12.38 | 314 | 12.08 | 307 | 0.74 | 18.7 | 0.47 | 11.9 |
| 12 x 12 | 304.8 x 304.8 | 129.45 | 87 | 12.53 | 318 | 12.125 | 308 | 0.81 | 20.6 | 0.515 | 13.1 |
| 12 x 12 | 304.8 x 304.8 | 142.9 | 96 | 12.71 | 323 | 12.16 | 309 | 0.9 | 22.9 | 0.55 | 14 |
| 12 x 12 | 304.8 x 304.8 | 157.72 | 106 | 12.89 | 327 | 12.22 | 310 | 0.99 | 25.1 | 0.61 | 15.5 |
| 12 x 12 | 304.8 x 304.8 | 202.36 | 136 | 13.41 | 341 | 12.4 | 315 | 1.25 | 31.8 | 0.79 | 20.1 |
| 12 x 12 | 304.8 x 304.8 | 226.17 | 152 | 13.71 | 348 | 12.48 | 317 | 1.4 | 35.6 | 0.87 | 22.1 |
| 12 x 12 | 304.8 x 304.8 | 252.99 | 170 | 14.03 | 356 | 12.57 | 319 | 1.56 | 39.6 | 0.96 | 24.4 |
| 12 x 12 | 304.8 x 304.8 | 282.72 | 190 | 14.38 | 365 | 12.67 | 322 | 1.735 | 44.1 | 1.06 | 26.9 |
| 12 x 12 | 304.8 x 304.8 | 312.51 | 210 | 14.71 | 374 | 12.79 | 325 | 1.9 | 48.3 | 1.18 | 30 |
| 12 x 12 | 304.8 x 304.8 | 342.28 | 230 | 15.05 | 382 | 12.895 | 328 | 2.07 | 52.6 | 1.285 | 32.6 |
| 14 x 5 | 355.6 x 127 | 32.7 | 22 | 13.74 | 349 | 5 | 127 | 0.34 | 8.5 | 0.23 | 5.8 |
| 14 x 5 | 355.6 x 127 | 38.7 | 26 | 13.91 | 353 | 5.03 | 128 | 0.42 | 10.7 | 0.26 | 6.5 |
| 14 x 6-3/4 | 355.6 x 171.4 | 44.6 | 30 | 13.84 | 352 | 6.73 | 171 | 0.39 | 9.8 | 0.27 | 6.9 |
| 14 x 6-3/4 | 355.6 x 171.4 | 50.6 | 34 | 13.98 | 355 | 6.75 | 171 | 0.46 | 11.6 | 0.29 | 7.2 |
| 14 x 6-3/4 | 355.6 x 171.4 | 56.5 | 38 | 14.1 | 358 | 6.77 | 172 | 0.52 | 13.1 | 0.31 | 7.9 |
| 14 x 8 | 355.6 x 203.2 | 64 | 43 | 13.66 | 347 | 8 | 203 | 0.53 | 13.5 | 0.31 | 7.7 |
| 14 x 8 | 355.6 x 203.2 | 71.4 | 48 | 13.79 | 350 | 8.03 | 204 | 0.6 | 15.1 | 0.34 | 8.6 |
| 14 x 8 | 355.6 x 203.2 | 78.9 | 53 | 13.92 | 354 | 8.06 | 205 | 0.66 | 16.8 | 0.37 | 9.4 |
| 14 x 10 | 355.6 x 254 | 90.8 | 61 | 13.89 | 353 | 10 | 254 | 0.65 | 16.4 | 0.38 | 9.5 |
| 14 x 10 | 355.6 x 254 | 101.2 | 68 | 14.04 | 357 | 10.04 | 255 | 0.72 | 18.3 | 0.42 | 10.5 |
| 14 x 10 | 355.6 x 254 | 110.1 | 74 | 14.17 | 360 | 10.07 | 256 | 0.79 | 19.9 | 0.45 | 11.4 |
| 14 x 10 | 355.6 x 254 | 122 | 82 | 14.31 | 363 | 10.13 | 257 | 0.855 | 21.7 | 0.51 | 13 |
| 14 x 14-1/2 | 355.6 x 368.3 | 133.9 | 90 | 14.02 | 356 | 14.52 | 369 | 0.71 | 18 | 0.44 | 11.2 |
| 14 x 14-1/2 | 355.6 x 368.3 | 147.3 | 99 | 14.16 | 360 | 14.57 | 370 | 0.78 | 19.8 | 0.49 | 12.3 |
| 14 x 14-1/2 | 355.6 x 368.3 | 162.2 | 109 | 14.32 | 364 | 14.61 | 371 | 0.86 | 21.8 | 0.53 | 13.3 |
| 14 x 14-1/2 | 355.6 x 368.3 | 178.6 | 120 | 14.48 | 368 | 14.67 | 373 | 0.94 | 23.9 | 0.59 | 15 |
| 14 x 14-1/2 | 355.6 x 368.3 | 196.4 | 132 | 14.66 | 372 | 14.73 | 374 | 1.03 | 26.2 | 0.65 | 16.4 |
| 14 x 16 | 355.6 x 406.4 | 215.8 | 145 | 14.78 | 375 | 15.5 | 394 | 1.09 | 27.7 | 0.68 | 17.3 |
| 14 x 16 | 355.6 x 406.4 | 236.6 | 159 | 14.98 | 380 | 15.57 | 395 | 1.19 | 30.2 | 0.75 | 18.9 |
| 14 x 16 | 355.6 x 406.4 | 261.9 | 176 | 15.22 | 387 | 15.65 | 398 | 1.31 | 33.3 | 0.83 | 21.1 |
| 14 x 16 | 355.6 x 406.4 | 287.2 | 193 | 15.48 | 393 | 15.71 | 399 | 1.44 | 36.6 | 0.89 | 22.6 |
| 14 x 16 | 355.6 x 406.4 | 313.96 | 211 | 15.72 | 399 | 15.8 | 401 | 1.56 | 39.6 | 0.98 | 24.9 |
| 14 x 16 | 355.6 x 406.4 | 346.74 | 233 | 16.04 | 407 | 15.89 | 404 | 1.72 | 43.7 | 1.07 | 27.2 |
| 14 x 16 | 355.6 x 406.4 | 382.41 | 257 | 16.38 | 416 | 15.995 | 406 | 1.89 | 48 | 1.175 | 29.8 |
| 16 x 5-1/2 | 406.4 x 139.7 | 38.7 | 26 | 15.69 | 399 | 5.5 | 140 | 0.35 | 8.8 | 0.25 | 6.4 |
| 16 x 5-1/2 | 406.4 x 139.7 | 46.1 | 31 | 15.88 | 403 | 5.53 | 140 | 0.44 | 11.2 | 0.28 | 7 |
| 16 x 7 | 406.4 x 177.8 | 53.6 | 36 | 15.86 | 403 | 6.99 | 177 | 0.43 | 10.9 | 0.3 | 7.5 |
| 16 x 7 | 406.4 x 177.8 | 59.5 | 40 | 16.01 | 407 | 7 | 178 | 0.51 | 12.8 | 0.31 | 7.7 |
| 16 x 7 | 406.4 x 177.8 | 67 | 45 | 16.13 | 410 | 7.04 | 179 | 0.57 | 14.4 | 0.35 | 8.8 |
| 16 x 7 | 406.4 x 177.8 | 74.4 | 50 | 16.26 | 413 | 7.07 | 180 | 0.63 | 16 | 0.38 | 9.7 |
| 16 x 7 | 406.4 x 177.8 | 84.8 | 57 | 16.43 | 417 | 7.12 | 181 | 0.72 | 18.2 | 0.43 | 10.9 |
| 16 x 10-1/4 | 406.4 x 260.3 | 99.7 | 67 | 16.33 | 415 | 10.24 | 260 | 0.67 | 16.9 | 0.4 | 10 |
| 16 x 10-1/4 | 406.4 x 260.3 | 114.6 | 77 | 16.52 | 420 | 10.3 | 261 | 0.76 | 19.3 | 0.46 | 11.6 |
| 16 x 10-1/4 | 406.4 x 260.3 | 132.4 | 89 | 16.75 | 425 | 10.37 | 263 | 0.88 | 22.2 | 0.53 | 13.3 |
| 16 x 10-1/4 | 406.4 x 260.3 | 149 | 100 | 16.97 | 431 | 10.425 | 265 | 0.985 | 25 | 0.585 | 14.9 |
| 18 x 6 | 457.2 x 152.4 | 52.1 | 35 | 17.7 | 450 | 6 | 152 | 0.43 | 10.8 | 0.3 | 7.6 |
| 18 x 6 | 457.2 x 152.4 | 59.5 | 40 | 17.9 | 455 | 6.02 | 153 | 0.53 | 13.3 | 0.32 | 8 |
| 18 x 6 | 457.2 x 152.4 | 68.4 | 46 | 18.06 | 459 | 6.06 | 154 | 0.61 | 15.4 | 0.36 | 9.1 |
| 18 x 7-1/2 | 457.2 x 190.5 | 74.4 | 50 | 17.99 | 457 | 7.5 | 190 | 0.57 | 14.5 | 0.36 | 9 |
| 18 x 7-1/2 | 457.2 x 190.5 | 81.8 | 55 | 18.11 | 460 | 7.53 | 191 | 0.63 | 16 | 0.39 | 9.9 |
| 18 x 7-1/2 | 457.2 x 190.5 | 89.3 | 60 | 18.24 | 463 | 7.56 | 192 | 0.7 | 17.7 | 0.42 | 10.5 |
| 18 x 7-1/2 | 457.2 x 190.5 | 96.7 | 65 | 18.35 | 466 | 7.59 | 193 | 0.75 | 19.1 | 0.45 | 11.4 |
| 18 x 7-1/2 | 457.2 x 190.5 | 105.6 | 71 | 18.47 | 469 | 7.64 | 194 | 0.81 | 20.6 | 0.5 | 12.6 |
| 18 x 11 | 457.2 x 279.4 | 113.1 | 76 | 18.21 | 463 | 11.04 | 280 | 0.68 | 17.3 | 0.43 | 10.8 |
| 18 x 11 | 457.2 x 279.4 | 128 | 86 | 18.39 | 467 | 11.09 | 282 | 0.77 | 19.6 | 0.48 | 12.2 |
| 18 x 11 | 457.2 x 279.4 | 144.3 | 97 | 18.59 | 472 | 11.15 | 283 | 0.87 | 22.1 | 0.54 | 13.6 |
| 18 x 11 | 457.2 x 279.4 | 157.7 | 106 | 18.73 | 476 | 11.2 | 284 | 0.94 | 23.9 | 0.59 | 15 |
| 18 x 11 | 457.2 x 279.4 | 177.1 | 119 | 18.97 | 482 | 11.27 | 286 | 1.06 | 26.9 | 0.66 | 16.6 |
| 18 x 11 | 457.2 x 279.4 | 193.46 | 130 | 19.25 | 489 | 11.16 | 283 | 1.2 | 30.5 | 0.67 | 17 |
| 18 x 11 | 457.2 x 279.4 | 213 | 143 | 19.49 | 495 | 11.22 | 285 | 1.32 | 33.5 | 0.73 | 18.5 |
| 18 x 11 | 457.2 x 279.4 | 235 | 158 | 19.72 | 501 | 11.3 | 287 | 1.44 | 36.6 | 0.81 | 20.6 |
| 18 x 11 | 457.2 x 279.4 | 260.4 | 175 | 20.04 | 509 | 11.375 | 289 | 1.59 | 40.4 | 0.89 | 22.6 |
| 18 x 11 | 457.2 x 279.4 | 285.69 | 192 | 20.35 | 517 | 11.455 | 291 | 1.75 | 44.4 | 0.96 | 24.4 |
| 18 x 11 | 457.2 x 279.4 | 314 | 211 | 20.67 | 525 | 11.555 | 293 | 1.91 | 48.5 | 1.06 | 26.9 |
| 18 x 11 | 457.2 x 279.4 | 348.23 | 234 | 21.06 | 535 | 11.65 | 296 | 2.11 | 53.6 | 1.16 | 29.5 |
| 18 x 11 | 457.2 x 279.4 | 384 | 258 | 21.46 | 545 | 11.77 | 299 | 2.3 | 58.4 | 1.28 | 32.5 |
| 18 x 11 | 457.2 x 279.4 | 421.15 | 283 | 21.85 | 554 | 11.89 | 302 | 2.5 | 63.5 | 1.4 | 35.6 |
| 18 x 11 | 457.2 x 279.4 | 462.82 | 311 | 22.32 | 567 | 12.005 | 305 | 2.74 | 69.6 | 1.52 | 38.6 |
| 21 x 6-1/2 | 533.4 x 165.1 | 65.5 | 44 | 20.66 | 525 | 6.5 | 165 | 0.45 | 11.4 | 0.35 | 8.9 |
| 21 x 6-1/2 | 533.4 x 165.1 | 74.4 | 50 | 20.83 | 529 | 6.53 | 166 | 0.54 | 13.6 | 0.38 | 9.7 |
| 21 x 6-1/2 | 533.4 x 165.1 | 84.8 | 57 | 21.06 | 535 | 6.56 | 166 | 0.65 | 16.5 | 0.41 | 10.3 |
| 21 x 8-1/4 | 533.4 x 209.5 | 92.3 | 62 | 20.99 | 533 | 8.24 | 209 | 0.62 | 15.6 | 0.4 | 10.2 |
| 21 x 8-1/4 | 533.4 x 209.5 | 101.2 | 68 | 21.13 | 537 | 8.27 | 210 | 0.69 | 17.4 | 0.43 | 10.9 |
| 21 x 8-1/4 | 533.4 x 209.5 | 108.6 | 73 | 21.24 | 539 | 8.295 | 211 | 0.74 | 18.8 | 0.455 | 11.6 |
| 21 x 8-1/4 | 533.4 x 209.5 | 123.5 | 83 | 21.43 | 544 | 8.355 | 212 | 0.835 | 21.2 | 0.515 | 13.1 |
| 21 x 8-1/4 | 533.4 x 209.5 | 138.4 | 93 | 21.62 | 549 | 8.42 | 214 | 0.93 | 23.6 | 0.58 | 14.7 |
| 21 x 12-1/4 | 533.4 x 311.15 | 150.3 | 101 | 21.36 | 543 | 12.29 | 312 | 0.8 | 20.3 | 0.5 | 12.7 |
| 21 x 12-1/4 | 533.4 x 311.15 | 165.2 | 111 | 21.51 | 546 | 12.34 | 313 | 0.88 | 22.2 | 0.55 | 14 |
| 21 x 12-1/4 | 533.4 x 311.15 | 181.5 | 122 | 21.68 | 551 | 12.39 | 315 | 0.96 | 24.4 | 0.6 | 15.2 |
| 21 x 12-1/2 | 533.4 x 317.5 | 218 | 147 | 22.06 | 560 | 12.51 | 318 | 1.15 | 29.2 | 0.72 | 18.3 |
| 24 x 7 | 609.6 x 177.8 | 81.8 | 55 | 23.57 | 599 | 7.01 | 178 | 0.51 | 12.8 | 0.4 | 10 |
| 24 x 7 | 609.6 x 177.8 | 92.3 | 62 | 23.74 | 603 | 7.04 | 179 | 0.59 | 15 | 0.43 | 10.9 |
| 24 x 9 | 609.6 x 228.6 | 101.2 | 68 | 23.73 | 603 | 8.97 | 228 | 0.59 | 14.9 | 0.42 | 10.5 |
| 24 x 9 | 609.6 x 228.6 | 113.1 | 76 | 23.93 | 608 | 8.99 | 228 | 0.68 | 17.3 | 0.44 | 11.2 |
| 24 x 9 | 609.6 x 228.6 | 125 | 84 | 24.1 | 612 | 9.02 | 229 | 0.77 | 19.6 | 0.47 | 11.9 |
| 24 x 9 | 609.6 x 228.6 | 139.9 | 94 | 24.31 | 617 | 9.07 | 230 | 0.88 | 22.2 | 0.52 | 13.1 |
| 24 x 9 | 609.6 x 228.6 | 153.3 | 103 | 24.53 | 623 | 9 | 229 | 0.98 | 24.9 | 0.55 | 14 |
| 24 x 12-3/4 | 609.6 x 323.8 | 154.8 | 104 | 24.06 | 611 | 12.75 | 324 | 0.75 | 19.1 | 0.5 | 12.7 |
| 24 x 12-3/4 | 609.6 x 323.8 | 174.1 | 117 | 24.26 | 616 | 12.8 | 325 | 0.85 | 21.6 | 0.55 | 14 |
| 24 x 12-3/4 | 609.6 x 323.8 | 194.9 | 131 | 24.48 | 622 | 12.86 | 327 | 0.96 | 24.4 | 0.61 | 15.4 |
| 24 x 12-3/4 | 609.6 x 323.8 | 217.2 | 146 | 24.74 | 628 | 12.9 | 328 | 1.09 | 27.7 | 0.65 | 16.5 |
| 24 x 12-3/4 | 609.6 x 323.8 | 241.1 | 162 | 25 | 635 | 12.96 | 329 | 1.22 | 31 | 0.71 | 17.9 |
| 24 x 12-3/4 | 609.6 x 323.8 | 262 | 176 | 25.24 | 641 | 12.89 | 327 | 1.34 | 34 | 0.75 | 19 |
| 24 x 12-3/4 | 609.6 x 323.8 | 286 | 192 | 25.47 | 647 | 12.95 | 329 | 1.46 | 37.1 | 0.81 | 20.6 |
| 24 x 12-3/4 | 609.6 x 323.8 | 308 | 207 | 25.71 | 653 | 13.01 | 330 | 1.57 | 39.9 | 0.87 | 22.1 |
| 24 x 12-3/4 | 609.6 x 323.8 | 341 | 229 | 26.02 | 661 | 13.11 | 333 | 1.73 | 43.9 | 0.96 | 24.4 |
| 24 x 12-3/4 | 609.6 x 323.8 | 372 | 250 | 26.34 | 669 | 13.18 | 335 | 1.89 | 48 | 1.04 | 26.4 |
| 27 x 10 | 685.8 x 254 | 125 | 84 | 26.71 | 678 | 9.96 | 253 | 0.64 | 16.3 | 0.46 | 11.7 |
| 27 x 10 | 685.8 x 254 | 139.9 | 94 | 26.92 | 684 | 9.99 | 254 | 0.75 | 18.9 | 0.49 | 12.4 |
| 27 x 10 | 685.8 x 254 | 151.8 | 102 | 27.09 | 688 | 10.02 | 254 | 0.83 | 21.1 | 0.52 | 13.1 |
| 27 x 10 | 685.8 x 254 | 169.6 | 114 | 27.29 | 693 | 10.07 | 256 | 0.93 | 23.6 | 0.57 | 14.5 |
| 27 x 10 | 685.8 x 254 | 191.95 | 129 | 27.63 | 702 | 10.01 | 254 | 1.1 | 27.9 | 0.61 | 15.5 |
| 27 x 14 | 685.8 x 355.6 | 217 | 146 | 27.38 | 695 | 13.965 | 355 | 0.975 | 24.8 | 0.605 | 15.4 |
| 27 x 14 | 685.8 x 355.6 | 239.7 | 161 | 27.59 | 701 | 14.02 | 356 | 1.08 | 27.4 | 0.66 | 16.8 |
| 27 x 14 | 685.8 x 355.6 | 264.89 | 178 | 27.81 | 706 | 14.085 | 358 | 1.19 | 30.2 | 0.725 | 18.4 |
| 27 x 14 | 685.8 x 355.6 | 288.67 | 194 | 28.11 | 714 | 14.035 | 356 | 1.34 | 34 | 0.75 | 19 |
| 30 x 10-1/2 | 762 x 266.7 | 133.9 | 90 | 29.53 | 750 | 10.4 | 264 | 0.61 | 15.5 | 0.47 | 13.2 |
| 30 x 10-1/2 | 762 x 266.7 | 147.3 | 99 | 29.65 | 753 | 10.45 | 265 | 0.67 | 17 | 0.52 | 13.8 |
| 30 x 10-1/2 | 762 x 266.7 | 160.7 | 108 | 29.83 | 758 | 10.48 | 266 | 0.76 | 19.3 | 0.55 | 14.4 |
| 30 x 10-1/2 | 762 x 266.7 | 172.6 | 116 | 30.01 | 762 | 10.5 | 267 | 0.85 | 21.6 | 0.57 | 15.6 |
| 30 x 10-1/2 | 762 x 266.7 | 184.53 | 124 | 30.17 | 766 | 10.515 | 267 | 0.93 | 23.6 | 0.585 | 14.9 |
| 30 x 10-1/2 | 762 x 266.7 | 196.4 | 132 | 30.31 | 770 | 10.54 | 268 | 1 | 25.4 | 0.61 | 16.6 |
| 30 x 10-1/2 | 762 x 266.7 | 220.25 | 148 | 30.67 | 779 | 10.48 | 266 | 1.18 | 30 | 0.65 | 16.5 |
| 30 x 15 | 762 x 381 | 257.5 | 173 | 30.44 | 773 | 14.985 | 381 | 1.065 | 27.1 | 0.655 | 16.6 |
| 30 x 15 | 762 x 381 | 284.24 | 191 | 30.68 | 779 | 15.04 | 382 | 1.185 | 30.1 | 0.71 | 18 |
| 30 x 15 | 762 x 381 | 314 | 211 | 30.94 | 786 | 15.105 | 384 | 1.315 | 33.4 | 0.775 | 19.7 |
| 33 x 11-1/2 | 838.2 x 292.1 | 175.6 | 118 | 32.86 | 835 | 11.48 | 292 | 0.74 | 18.8 | 0.55 | 14 |
| 33 x 11-1/2 | 838.2 x 292.1 | 193.4 | 130 | 33.09 | 840 | 11.51 | 292 | 0.86 | 21.7 | 0.58 | 14.7 |
| 33 x 11-1/2 | 838.2 x 292.1 | 209.8 | 141 | 33.3 | 846 | 11.54 | 293 | 0.96 | 24.4 | 0.61 | 15.4 |
| 33 x 11-1/2 | 838.2 x 292.1 | 226.2 | 152 | 33.49 | 851 | 11.57 | 294 | 1.06 | 26.8 | 0.64 | 16.1 |
| 33 x 11-1/2 | 838.2 x 292.1 | 251.5 | 169 | 33.82 | 859 | 11.5 | 292 | 1.22 | 31 | 0.67 | 17 |
| 33 x 15-3/4 | 838.2 x 399.7 | 299.12 | 201 | 33.68 | 855 | 15.745 | 400 | 1.15 | 29.2 | 0.715 | 18.2 |
| 33 x 15-3/4 | 838.2 x 399.7 | 328.88 | 221 | 33.93 | 862 | 15.805 | 401 | 1.275 | 32.4 | 0.775 | 19.7 |
| 36 x 12 | 914.4 x 304.8 | 200.9 | 135 | 35.55 | 903 | 11.95 | 304 | 0.79 | 20.1 | 0.6 | 15.2 |
| 36 x 12 | 914.4 x 304.8 | 223.2 | 150 | 35.85 | 911 | 11.98 | 304 | 0.94 | 23.9 | 0.63 | 15.9 |
| 36 x 12 | 914.4 x 304.8 | 238.1 | 160 | 36.01 | 915 | 12 | 305 | 1.02 | 25.9 | 0.65 | 16.5 |
| 36 x 12 | 914.4 x 304.8 | 252.99 | 170 | 36.17 | 919 | 12.03 | 306 | 1.1 | 27.9 | 0.68 | 17.3 |
| 36 x 12 | 914.4 x 304.8 | 270.85 | 182 | 36.33 | 923 | 12.075 | 307 | 1.18 | 30 | 0.725 | 18.4 |
| 36 x 12 | 914.4 x 304.8 | 288.7 | 194 | 36.49 | 927 | 12.115 | 308 | 1.26 | 32 | 0.765 | 19.4 |
| 36 x 12 | 914.4 x 304.8 | 312.51 | 210 | 36.69 | 932 | 12.18 | 309 | 1.36 | 34.5 | 0.83 | 21.1 |
| 36 x 12 | 914.4 x 304.8 | 345.25 | 232 | 37.12 | 943 | 12.12 | 308 | 1.57 | 39.9 | 0.87 | 22.1 |
| 36 x 12 | 914.4 x 304.8 | 380.97 | 256 | 37.43 | 951 | 12.215 | 310 | 1.73 | 43.9 | 0.96 | 24.4 |
Viga IPS
| Peralte pulg. | Peralte mm. | Peso kg/m | Peso lb/pie | Patín ancho pulg. | Patín ancho mm. | Patín espesor pulg. | Patín espesor mm. | Alma espesor pulg. | Alma espesor mm. |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 76.2 | 8.48 | 5.7 | 2.33 | 59.18 | 0.26 | 6.6 | 0.17 | 4.3 |
| 4 | 101.6 | 11.46 | 7.7 | 2.66 | 67.64 | 0.29 | 7.4 | 0.19 | 4.9 |
| 5 | 127 | 14.88 | 10 | 3 | 76.3 | 0.33 | 8.3 | 0.21 | 5.4 |
| 6 | 152.4 | 18.6 | 12.5 | 3.33 | 84.63 | 0.36 | 9.1 | 0.23 | 5.9 |
Perfiles de acero estructural huecos (Hollow Structural Section) de alta resistencia, disponibles en grado A-500 B para columnas y armaduras.
HSS
| Tamaño pulg. | Tamaño mm. | Espesor pulg. | Espesor mm. | Peso kg/m |
|---|---|---|---|---|
| 6 x 6 | 152.4 x 152.4 | 3/16 | 4.76 | 21.62 |
| 6 x 6 | 152.4 x 152.4 | 1/4 | 6.35 | 28.31 |
| 6 x 6 | 152.4 x 152.4 | 5/16 | 7.94 | 34.73 |
| 6 x 6 | 152.4 x 152.4 | 3/8 | 9.53 | 40.9 |
| 6 x 6 | 152.4 x 152.4 | 1/2 | 12.7 | 52.44 |
| 8 x 4 | 203.2 x 101.6 | 3/16 | 4.76 | 21.62 |
| 8 x 4 | 203.2 x 101.6 | 1/4 | 6.35 | 28.31 |
| 8 x 4 | 203.2 x 101.6 | 5/16 | 7.94 | 34.73 |
| 8 x 4 | 203.2 x 101.6 | 3/8 | 9.53 | 40.9 |
| 8 x 4 | 203.2 x 101.6 | 1/2 | 12.7 | 52.44 |
| 8 x 6 | 203.2 x 152.4 | 3/16 | 4.76 | 25.42 |
| 8 x 6 | 203.2 x 152.4 | 1/4 | 6.35 | 33.37 |
| 8 x 6 | 203.2 x 152.4 | 5/16 | 7.94 | 41.07 |
| 8 x 6 | 203.2 x 152.4 | 3/8 | 9.53 | 48.48 |
| 8 x 6 | 203.2 x 152.4 | 1/2 | 12.7 | 62.58 |
| 8 x 8 | 203.2 x 203.2 | 3/16 | 4.76 | 29.21 |
| 8 x 8 | 203.2 x 203.2 | 1/4 | 6.35 | 38.42 |
| 8 x 8 | 203.2 x 203.2 | 5/16 | 7.94 | 47.38 |
| 8 x 8 | 203.2 x 203.2 | 3/8 | 9.53 | 56.09 |
| 8 x 8 | 203.2 x 203.2 | 1/2 | 12.7 | 72.7 |
| 8 x 8 | 203.2 x 203.2 | 5/8 | 15.88 | 88.28 |
| 10 x 4 | 254 x 101.6 | 3/16 | 4.76 | 25.42 |
| 10 x 4 | 254 x 101.6 | 1/4 | 6.35 | 33.36 |
| 10 x 4 | 254 x 101.6 | 5/16 | 7.94 | 41.06 |
| 10 x 4 | 254 x 101.6 | 3/8 | 9.53 | 48.48 |
| 10 x 4 | 254 x 101.6 | 1/2 | 12.7 | 62.58 |
| 10 x 6 | 254 x 152.4 | 3/16 | 4.76 | 29.21 |
| 10 x 6 | 254 x 152.4 | 1/4 | 6.35 | 38.42 |
| 10 x 6 | 254 x 152.4 | 5/16 | 7.94 | 47.38 |
| 10 x 6 | 254 x 152.4 | 3/8 | 9.53 | 56.09 |
| 10 x 6 | 254 x 152.4 | 1/2 | 12.7 | 72.7 |
| 10 x 8 | 254 x 203.2 | 3/16 | 4.76 | 33.01 |
| 10 x 8 | 254 x 203.2 | 1/4 | 6.35 | 43.5 |
| 10 x 8 | 254 x 203.2 | 5/16 | 7.94 | 53.72 |
| 10 x 8 | 254 x 203.2 | 3/8 | 9.53 | 63.68 |
| 10 x 8 | 254 x 203.2 | 1/2 | 12.7 | 82.83 |
| 10 x 10 | 254 x 254 | 3/16 | 4.76 | 36.8 |
| 10 x 10 | 254 x 254 | 1/4 | 6.35 | 48.56 |
| 10 x 10 | 254 x 254 | 5/16 | 7.94 | 60.05 |
| 10 x 10 | 254 x 254 | 3/8 | 9.53 | 71.28 |
| 10 x 10 | 254 x 254 | 1/2 | 12.7 | 92.95 |
| 10 x 10 | 254 x 254 | 5/8 | 15.88 | 113.59 |
| *12 x 4 | 304.8 x 101.6 | 3/16 | 4.76 | 29.21 |
| *12 x 4 | 304.8 x 101.6 | 1/4 | 6.35 | 38.42 |
| *12 x 4 | 304.8 x 101.6 | 5/16 | 7.94 | 47.38 |
| *12 x 4 | 304.8 x 101.6 | 3/8 | 9.53 | 56.09 |
| 12 x 6 | 304.8 x 152.4 | 3/16 | 4.76 | 33.01 |
| 12 x 6 | 304.8 x 152.4 | 1/4 | 6.35 | 43.5 |
| 12 x 6 | 304.8 x 152.4 | 5/16 | 7.94 | 53.72 |
| 12 x 6 | 304.8 x 152.4 | 3/8 | 9.53 | 63.68 |
| 12 x 6 | 304.8 x 152.4 | 1/2 | 12.7 | 82.83 |
| 12 x 8 | 304.8 x 203.2 | 3/16 | 4.76 | 36.8 |
| 12 x 8 | 304.8 x 203.2 | 1/4 | 6.35 | 48.56 |
| 12 x 8 | 304.8 x 203.2 | 5/16 | 7.94 | 60.05 |
| 12 x 8 | 304.8 x 203.2 | 3/8 | 9.53 | 71.28 |
| 12 x 8 | 304.8 x 203.2 | 1/2 | 12.7 | 92.95 |
| 12 x 8 | 304.8 x 203.2 | 5/8 | 15.88 | 113.59 |
| 12 x 12 | 304.8 x 304.8 | 1/4 | 6.35 | 56.68 |
| 12 x 12 | 304.8 x 304.8 | 5/16 | 7.94 | 72.71 |
| 12 x 12 | 304.8 x 304.8 | 3/8 | 9.53 | 86.46 |
| 12 x 12 | 304.8 x 304.8 | 1/2 | 12.7 | 113.2 |
| 12 x 12 | 304.8 x 304.8 | 5/8 | 15.88 | 138.9 |
| 14 x 6 | 355.6 x 152.4 | 5/16 | 7.94 | 60.05 |
| 14 x 6 | 355.6 x 152.4 | 3/8 | 9.53 | 71.28 |
| 14 x 14 | 355.6 x 355.6 | 5/16 | 7.94 | 85.36 |
| 14 x 14 | 355.6 x 355.6 | 3/8 | 9.53 | 101.66 |
| 14 x 14 | 355.6 x 355.6 | 1/2 | 12.7 | 133.46 |
| 14 x 14 | 355.6 x 355.6 | 5/8 | 15.88 | 164.23 |
| 16 x 8 | 406.4 x 203.2 | 3/16 | 4.76 | 44.41 |
| 16 x 8 | 406.4 x 203.2 | 5/16 | 7.94 | 72.71 |
| 16 x 8 | 406.4 x 203.2 | 1/2 | 12.7 | 113.2 |
| *16 x 12 | 406.4 x 304.8 | 5/16 | 7.94 | 85.36 |
| *16 x 12 | 406.4 x 304.8 | 3/8 | 9.53 | 101.66 |
| *16 x 12 | 406.4 x 304.8 | 1/2 | 12.7 | 133.46 |
| 16 x 16 | 406.4 x 406.4 | 5/16 | 7.94 | 98.03 |
| 16 x 16 | 406.4 x 406.4 | 3/8 | 9.53 | 116.85 |
| 16 x 16 | 406.4 x 406.4 | 1/2 | 12.7 | 153.5 |
| 16 x 16 | 406.4 x 406.4 | 5/8 | 15.88 | 189.55 |

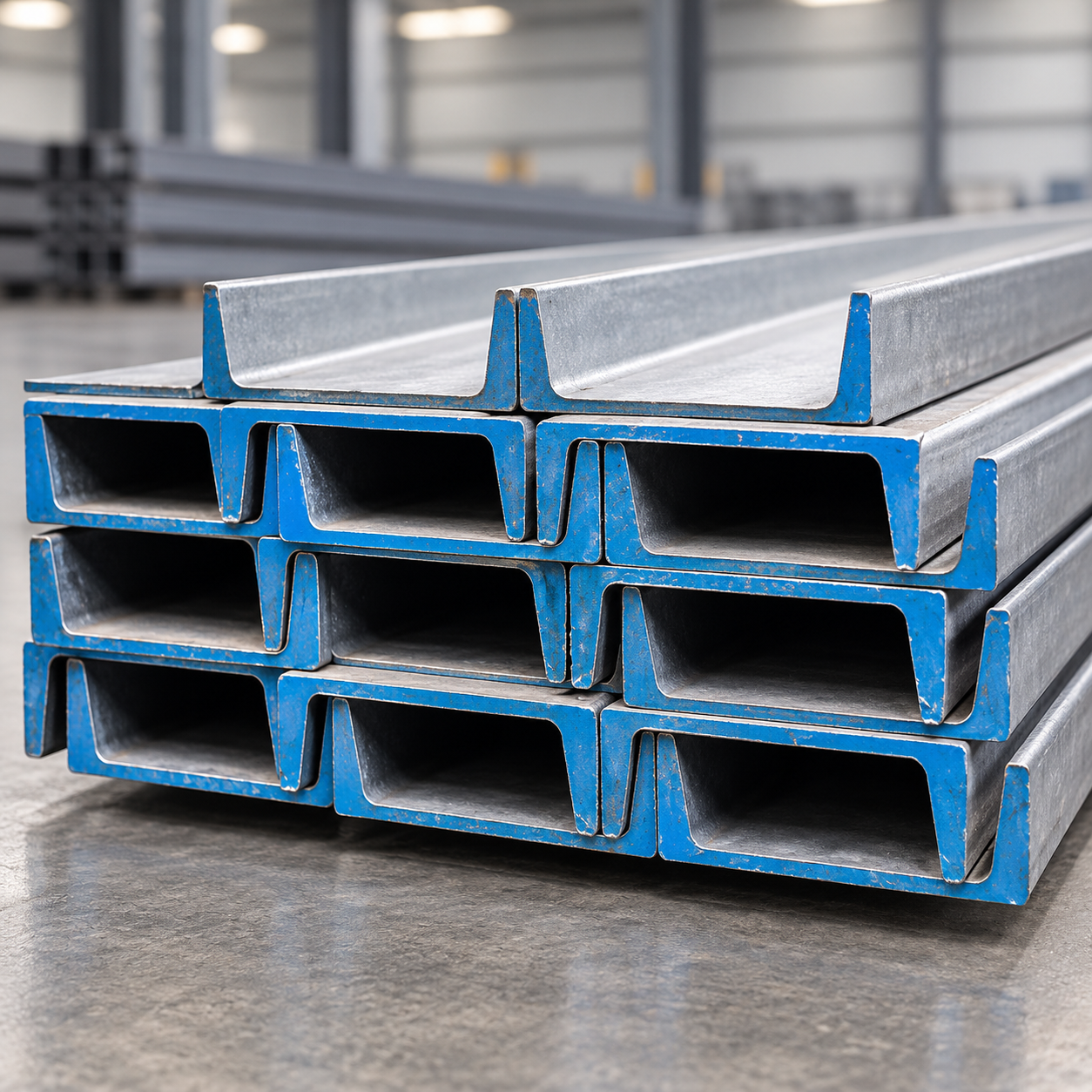

Ofrecemos canal en diferentes medidas y pesos, en grado A-36 y en alta resistencia, usado en largueros, marcos y soportería.
Canal CPS
| Peralte pulg. | Peralte mm. | Peso kg/m | Peso lb/pie | Patín ancho pulg. | Patín ancho mm. | Patín espesor pulg. | Patín espesor mm. | Alma espesor pulg. | Alma espesor mm. |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 76.2 | 5.21 | 3.5 | 1.372 | 34.85 | 0.273 | 6.93 | 0.132 | 3.35 |
| 3 | 76.2 | 6.1 | 4.1 | 1.41 | 35.81 | 0.273 | 6.93 | 0.17 | 4.32 |
| 4 | 101.6 | 6.7 | 4.5 | 1.584 | 40.23 | 0.296 | 7.52 | 0.125 | 3.18 |
| 4 | 101.6 | 8.04 | 5.4 | 1.584 | 40.23 | 0.296 | 7.52 | 0.184 | 4.67 |
| 5 | 127 | 9.97 | 6.7 | 1.75 | 44.45 | 0.32 | 8.13 | 0.19 | 4.83 |
| 5 | 127 | 13.5 | 9 | 1.88 | 47.9 | 0.32 | 8.13 | 0.326 | 8.3 |
| 6 | 152.4 | 12.2 | 8.2 | 1.92 | 48.77 | 0.343 | 8.71 | 0.2 | 5.08 |
| 6 | 152.4 | 15.63 | 10.5 | 2.034 | 51.66 | 0.343 | 8.71 | 0.314 | 7.98 |
| 6 | 152.4 | 19.35 | 13 | 2.157 | 54.79 | 0.343 | 8.71 | 0.437 | 11.1 |
| 8 | 203.2 | 17.11 | 11.5 | 2.26 | 57.4 | 0.39 | 9.91 | 0.22 | 5.59 |
| 8 | 203.2 | 20.46 | 13.75 | 2.343 | 59.51 | 0.39 | 9.91 | 0.303 | 7.7 |
| 8 | 203.2 | 27.9 | 18.75 | 2.527 | 64.19 | 0.39 | 9.91 | 0.487 | 12.37 |
| 10 | 254 | 22.77 | 15.3 | 2.6 | 66.04 | 0.436 | 11.07 | 0.24 | 6.1 |
| 10 | 254 | 29.76 | 20 | 2.739 | 69.57 | 0.436 | 11.07 | 0.379 | 9.63 |
| 10 | 254 | 37.2 | 25 | 2.886 | 73.3 | 0.436 | 11.07 | 0.526 | 13.36 |
| 10 | 254 | 44.64 | 30 | 3.033 | 77.04 | 0.436 | 11.07 | 0.673 | 17.09 |
| 12 | 304.8 | 30.8 | 20.7 | 2.942 | 74.73 | 0.501 | 12.73 | 0.282 | 7.16 |
| 12 | 304.8 | 37.2 | 25 | 3.047 | 77.39 | 0.501 | 12.73 | 0.387 | 9.83 |
| 12 | 304.8 | 44.64 | 30 | 3.17 | 80.52 | 0.501 | 12.73 | 0.51 | 12.95 |
| 15 | 381 | 50.45 | 33.9 | 3.4 | 86.36 | 0.65 | 16.51 | 0.4 | 10.16 |
| 15 | 381 | 59.53 | 40 | 3.52 | 89.41 | 0.65 | 16.51 | 0.52 | 13.21 |

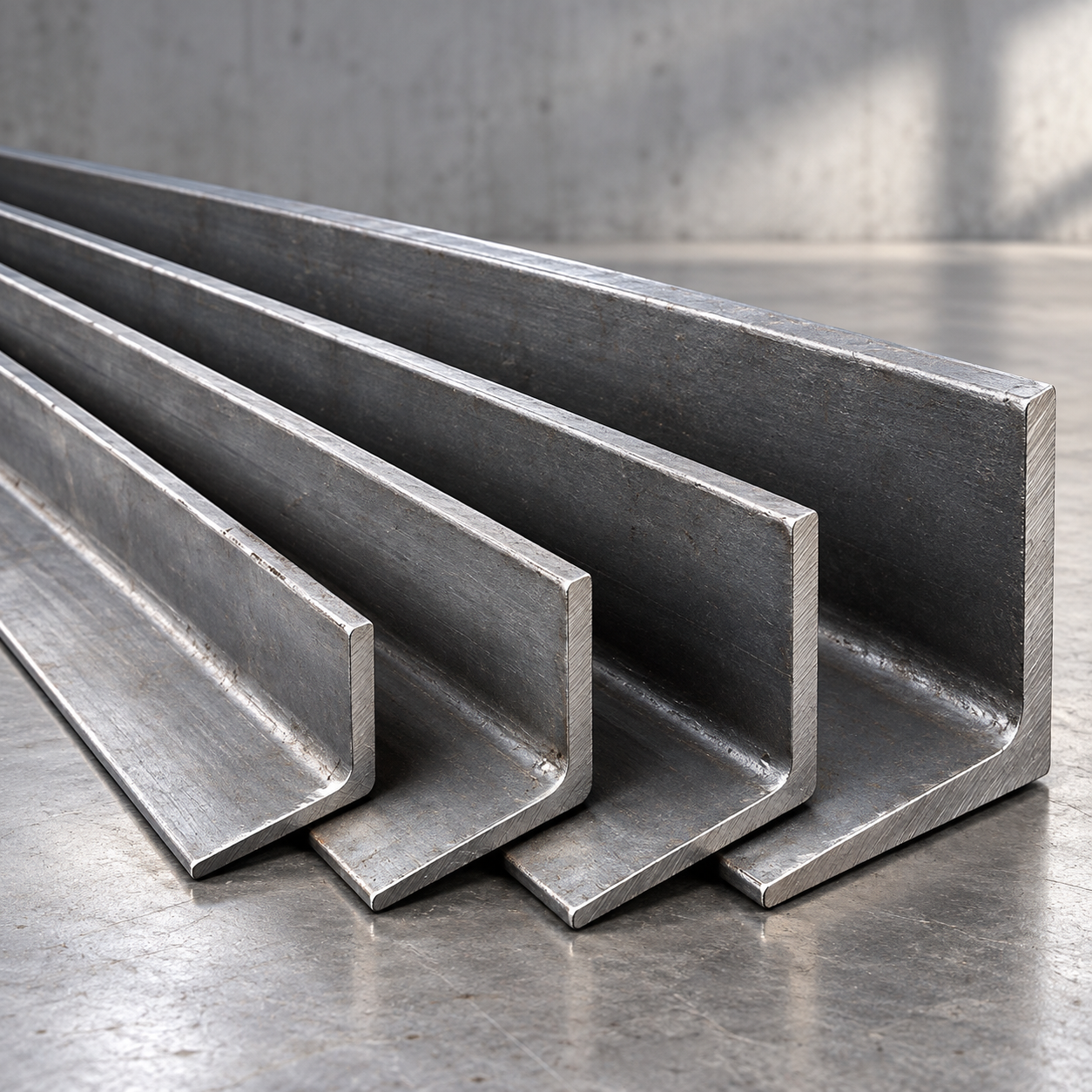

Ángulos de acero laminado en caliente en grado estructural de mediana y alta resistencia, en lados iguales o desiguales y en diferentes medidas.
Ángulo Lados Iguales
| Espesor pulg. | Ancho pulg. | Espesor mm. | Ancho mm. | kg/m | lb/pie |
|---|---|---|---|---|---|
| cal 12 (.109") | 1 | 2.77 | 25.4 | 1.06 | 0.71 |
| cal 12 (.109") | 1 1/4 | 2.77 | 31.75 | 1.32 | 0.89 |
| cal 12 (.109") | 1 1/2 | 2.77 | 38.1 | 1.61 | 1.08 |
| 1/8 | 3/4 | 3.18 | 19.05 | 0.88 | 0.59 |
| 1/8 | 1 | 3.18 | 25.4 | 1.19 | 0.8 |
| 1/8 | 1 1/4 | 3.18 | 31.75 | 1.5 | 1.01 |
| 1/8 | 1 1/2 | 3.18 | 38.1 | 1.83 | 1.23 |
| 1/8 | 2 | 3.18 | 50.8 | 2.46 | 1.65 |
| 5/32 | 1 1/2 | 3.96 | 38 | 2.26 | 1.52 |
| 5/32 | 2 | 3.96 | 50.8 | 3.04 | 2.04 |
| 3/16 | 1 | 4.76 | 25.4 | 1.73 | 1.16 |
| 3/16 | 1 1/4 | 4.76 | 31.75 | 2.2 | 1.48 |
| 3/16 | 1 1/2 | 4.76 | 38.1 | 2.68 | 1.8 |
| 3/16 | 2 | 4.76 | 50.8 | 3.63 | 2.44 |
| 3/16 | 2 1/2 | 4.76 | 63.5 | 4.57 | 3.07 |
| 3/16 | 3 | 4.76 | 76.2 | 5.52 | 3.71 |
| 1/4 | 1 | 6.35 | 25.4 | 2.22 | 1.49 |
| 1/4 | 1 1/4 | 6.35 | 31.75 | 2.86 | 1.92 |
| 1/4 | 1 1/2 | 6.35 | 38.1 | 3.48 | 2.34 |
| 1/4 | 2 | 6.35 | 50.8 | 4.75 | 3.19 |
| 1/4 | 2 1/2 | 6.35 | 63.5 | 6.1 | 4.1 |
| 1/4 | 3 | 6.35 | 76.2 | 7.29 | 4.9 |
| 1/4 | 3 1/2 | 6.35 | 88.9 | 8.63 | 5.8 |
| 1/4 | 4 | 6.35 | 101.6 | 9.82 | 6.6 |
| 5/16 | 2 | 7.94 | 50.8 | 5.83 | 3.92 |
| 5/16 | 2 1/2 | 7.94 | 63.5 | 7.44 | 5 |
| 5/16 | 3 | 7.94 | 76.2 | 9.08 | 6.1 |
| 5/16 | 3 1/2 | 7.94 | 88.9 | 10.71 | 7.2 |
| 5/16 | 4 | 7.94 | 101.6 | 12.2 | 8.2 |
| 5/16 | 5 | 7.94 | 127 | 15.3 | 10.3 |
| 3/8 | 2 | 9.53 | 50.8 | 6.99 | 4.7 |
| 3/8 | 2 1/2 | 9.53 | 63.5 | 8.78 | 5.9 |
| 3/8 | 3 | 9.53 | 76.2 | 10.71 | 7.2 |
| 3/8 | 4 | 9.53 | 101.6 | 14.58 | 9.8 |
| 3/8 | 5 | 9.53 | 127 | 18.3 | 12.3 |
| 3/8 | 6 | 9.53 | 152.4 | 22.17 | 14.9 |
| *7/16 | 4 | 11.1 | 102 | 16.8 | 11.3 |
| *7/16 | 5 | 11.1 | 127 | 21.3 | 14.3 |
| *7/16 | 6 | 11.1 | 152 | 25.6 | 17.2 |
| 1/2 | 3 | 12.7 | 76.2 | 13.99 | 9.4 |
| 1/2 | 4 | 12.7 | 101.6 | 19.05 | 12.8 |
| 1/2 | 5 | 12.7 | 127 | 24.11 | 16.2 |
| 1/2 | 6 | 12.7 | 152.4 | 29.17 | 19.6 |
| 1/2 | 8 | 12.7 | 203 | 39.3 | 26.4 |
| 5/8 | 4 | 15.88 | 101.6 | 23.36 | 15.7 |
| 5/8 | 6 | 15.88 | 152.4 | 36.01 | 24.2 |
| 5/8 | 8 | 15.88 | 203.2 | 48.66 | 32.7 |
| 3/4 | 5 | 19.05 | 127 | 35.12 | 23.6 |
| 3/4 | 6 | 19.05 | 152.4 | 42.71 | 28.7 |
| 3/4 | 8 | 19.05 | 203.2 | 57.89 | 38.9 |
| 7/8 | 8 | 22.23 | 203 | 66.97 | 45 |
| 1 | 6 | 25.4 | 152.4 | 55.66 | 37.4 |
| 1 | 8 | 25.4 | 203 | 75.9 | 51 |
| 1 1/8 | 8 | 28.56 | 203 | 84.68 | 56.9 |
Ángulo Lados Desiguales
| Espesor pulg. | Dimensión pulg. | Espesor mm. | Dimensión mm. | kg/m | lb/pie |
|---|---|---|---|---|---|
| 3/16 | 3 x 2 | 4.76 | 76.2 x 50.8 | 4.57 | 3.07 |
| 1/4 | 3 x 2 | 6.35 | 76.2 x 50.8 | 6.7 | 4.5 |
| 1/4 | 4 x 3 | 6.35 | 101.6 x 76.2 | 8.63 | 5.8 |
| 5/16 | 4 x 3 | 7.9 | 101.6 x 76.2 | 10.7 | 7.2 |
| 3/8 | 6 x 4 | 9.53 | 152.4 x 101.6 | 18.3 | 12.3 |
| 1/2 | 6 x 4 | 12.7 | 152.4 x 101.6 | 24.11 | 16.2 |

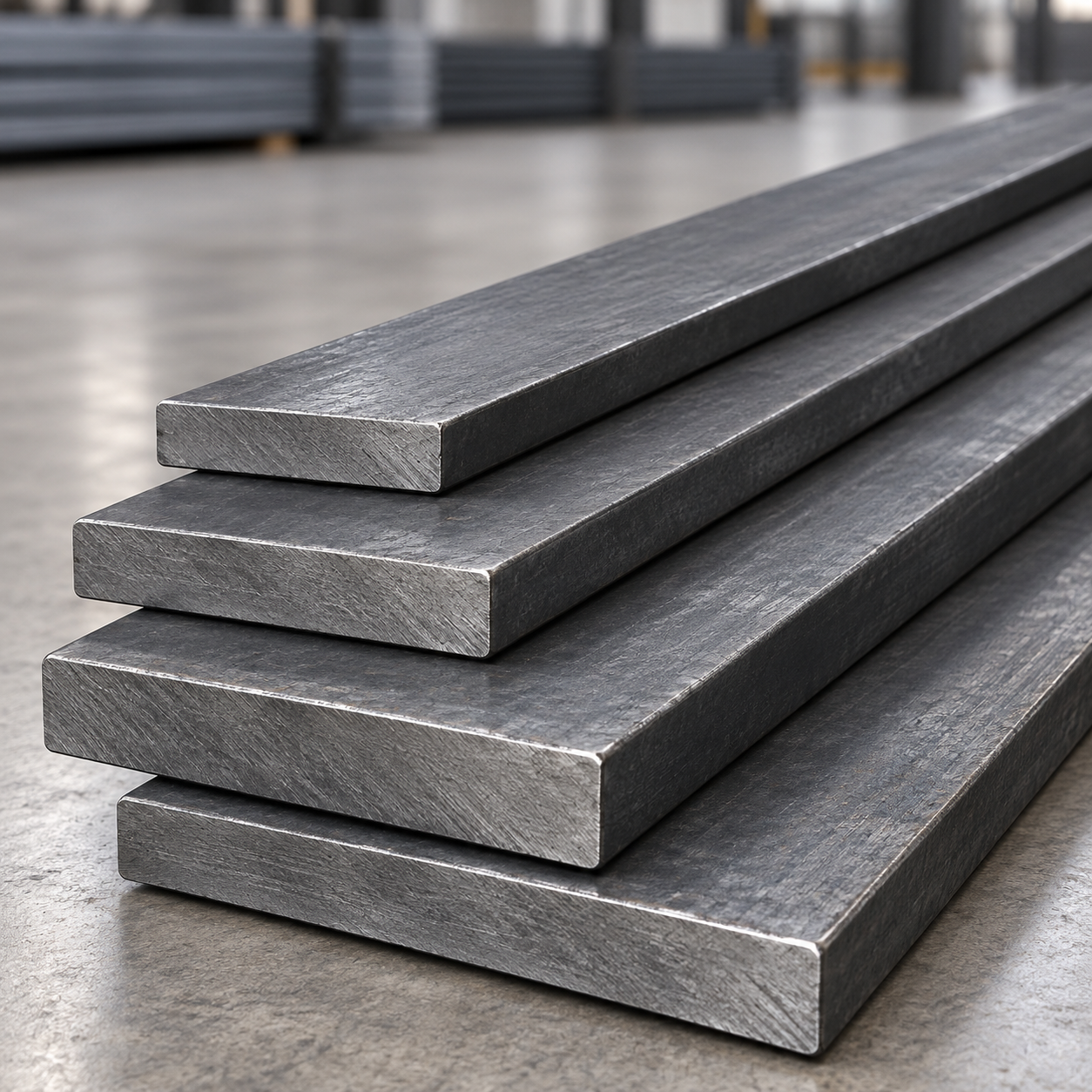

Ofrecemos solera de molino y solera de slitter en grado A-36 y alta resistencia, en diferentes medidas, para herrería, bases y refuerzos.
Solera Molino
| Espesor pulg. | Ancho pulg. | Espesor mm. | Ancho mm. | kg/m | lb/pie |
|---|---|---|---|---|---|
| 1/8 | 1/2 | 3.2 | 12.7 | 0.31 | 0.21 |
| 1/8 | 3/4 | 3.2 | 19.1 | 0.47 | 0.32 |
| 1/8 | 1 | 3.2 | 25.4 | 0.63 | 0.43 |
| 1/8 | 1 1/4 | 3.2 | 31.7 | 0.79 | 0.53 |
| 1/8 | 1 1/2 | 3.2 | 38.1 | 0.95 | 0.64 |
| 1/8 | 2 | 3.2 | 50.8 | 1.26 | 0.85 |
| 3/16 | 1/2 | 4.8 | 12.7 | 0.47 | 0.32 |
| 3/16 | 3/4 | 4.8 | 19.1 | 0.71 | 0.48 |
| 3/16 | 1 | 4.8 | 25.4 | 0.94 | 0.64 |
| 3/16 | 1 1/4 | 4.8 | 31.7 | 1.18 | 0.8 |
| 3/16 | 1 1/2 | 4.8 | 38.1 | 1.42 | 0.96 |
| 3/16 | 2 | 4.8 | 50.8 | 1.9 | 1.28 |
| 3/16 | 2 1/2 | 4.8 | 63.5 | 2.37 | 1.59 |
| 1/4 | 1/2 | 6.3 | 12.7 | 0.63 | 0.43 |
| 1/4 | 3/4 | 6.3 | 19.1 | 0.95 | 0.64 |
| 1/4 | 1 | 6.3 | 25.4 | 1.26 | 0.85 |
| 1/4 | 1 1/4 | 6.3 | 31.7 | 1.58 | 1.06 |
| 1/4 | 1 1/2 | 6.3 | 38.1 | 1.9 | 1.28 |
| 1/4 | 2 | 6.3 | 50.8 | 2.53 | 1.7 |
| 1/4 | 2 1/2 | 6.3 | 63.5 | 3.17 | 2.13 |
| 1/4 | 3 | 6.3 | 76.2 | 3.79 | 2.55 |
| 1/4 | 4 | 6.3 | 101.6 | 5.06 | 3.4 |
| 1/4 | 5 | 6.3 | 127 | 6.32 | 4.25 |
| 1/4 | 6 | 6.3 | 152.4 | 7.59 | 5.1 |
| 1/4 | 8 | 6.3 | 203.2 | 10.12 | 6.8 |
| 1/4 | *10 | 6.3 | 254 | 12.65 | 8.5 |
| 1/4 | 12 | 6.3 | 304.8 | 15.18 | 10.2 |
| 5/16 | 1 | 7.9 | 25.4 | 1.58 | 1.06 |
| 5/16 | 1 1/2 | 7.9 | 38.1 | 2.37 | 1.59 |
| 5/16 | 2 | 7.9 | 50.8 | 3.16 | 2.13 |
| 5/16 | 2 1/2 | 7.9 | 63.5 | 3.95 | 2.66 |
| 5/16 | 3 | 7.9 | 76.2 | 4.79 | 3.22 |
| 5/16 | 4 | 7.9 | 101.6 | 6.32 | 4.25 |
| 5/16 | 5 | 7.9 | 127 | 7.9 | 5.31 |
| 5/16 | 6 | 7.9 | 152.4 | 9.49 | 6.38 |
| 3/8 | 1 | 9.5 | 25.4 | 1.9 | 1.28 |
| 3/8 | 1 1/4 | 9.5 | 31.7 | 2.37 | 1.59 |
| 3/8 | 1 1/2 | 9.5 | 38.1 | 2.84 | 1.91 |
| 3/8 | 2 | 9.5 | 50.8 | 3.79 | 2.55 |
| 3/8 | 2 1/2 | 9.5 | 63.5 | 4.74 | 3.19 |
| 3/8 | 3 | 9.5 | 76.2 | 5.69 | 3.83 |
| 3/8 | 4 | 9.5 | 101.6 | 7.59 | 5.1 |
| 3/8 | 5 | 9.5 | 127 | 9.49 | 6.38 |
| 3/8 | 6 | 9.5 | 152.4 | 11.38 | 7.65 |
| 3/8 | 8 | 9.5 | 203.2 | 15.19 | 10.21 |
| 3/8 | 10 | 9.5 | 254 | 18.99 | 12.76 |
| 3/8 | 12 | 9.5 | 304.8 | 22.78 | 15.31 |
| 1/2 | 1 1/2 | 12.7 | 38.1 | 3.81 | 2.56 |
| 1/2 | 2 | 12.7 | 50.8 | 5.06 | 3.4 |
| 1/2 | 2 1/2 | 12.7 | 63.5 | 6.32 | 4.25 |
| 1/2 | 3 | 12.7 | 76.2 | 7.59 | 5.1 |
| 1/2 | 4 | 12.7 | 101.6 | 10.12 | 6.8 |
| 1/2 | 5 | 12.7 | 127 | 12.65 | 8.5 |
| 1/2 | 6 | 12.7 | 152.4 | 15.18 | 10.2 |
| 1/2 | 8 | 12.7 | 203.2 | 20.25 | 13.61 |
| 1/2 | 10 | 12.7 | 254 | 25.31 | 17.01 |
| 1/2 | 12 | 12.7 | 304.8 | 30.39 | 20.42 |
| 5/8 | 4 | 15.9 | 101.6 | 12.65 | 8.5 |
| 5/8 | 5 | 15.9 | 127 | 15.81 | 10.63 |
| 5/8 | 6 | 15.9 | 152.4 | 18.97 | 12.75 |
| 5/8 | 8 | 15.9 | 203.2 | 25.31 | 17.01 |
| 5/8 | *9 | 15.9 | 228.6 | 28.47 | 19.13 |
| 5/8 | *10 | 15.9 | 254 | 31.65 | 21.27 |
| 5/8 | *12 | 15.9 | 304.8 | 37.99 | 25.53 |
| 3/4 | 2 1/2 | 19.05 | 63.5 | 9.49 | 6.38 |
| 3/4 | 3 | 19.05 | 76.2 | 11.39 | 7.65 |
| 3/4 | 4 | 19.05 | 101.6 | 15.18 | 10.2 |
| 3/4 | 5 | 19.05 | 127 | 18.98 | 12.75 |
| 3/4 | 6 | 19.05 | 152.4 | 22.77 | 15.3 |
| 3/4 | 8 | 19.05 | 203.2 | 30.38 | 20.41 |
| 3/4 | *9 | 19.05 | 228.6 | 34.16 | 22.96 |
| 3/4 | *10 | 19.05 | 254 | 37.98 | 25.52 |
| 3/4 | *12 | 19.05 | 304.8 | 45.57 | 30.62 |
| 1 | 2 | 25.4 | 50.8 | 10.12 | 6.8 |
| 1 | 3 | 25.4 | 76.2 | 15.18 | 10.2 |
| 1 | 4 | 25.4 | 101.6 | 20.24 | 13.6 |
| 1 | 5 | 25.4 | 127 | 25.31 | 17 |
| 1 | 6 | 25.4 | 152.4 | 30.37 | 20.41 |
| 1 | 8 | 25.4 | 203.2 | 40.49 | 27.21 |
| 1 | *10 | 25.4 | 254 | 50.64 | 34.03 |
| 1 | *12 | 25.4 | 304.8 | 60.76 | 40.83 |
Solera Slitter
| Espesor pulg. | Ancho pulg. | Espesor mm. | Ancho mm. | kg/m | lb/pie |
|---|---|---|---|---|---|
| 1/8 | 1/2 | 3.2 | 12.7 | 0.31 | 0.21 |
| 1/8 | 3/4 | 3.2 | 19.1 | 0.47 | 0.32 |
| 1/8 | 1 | 3.2 | 25.4 | 0.63 | 0.43 |
| 1/8 | 1 1/4 | 3.2 | 31.7 | 0.79 | 0.53 |
| 1/8 | 1 1/2 | 3.2 | 38.1 | 0.95 | 0.64 |
| 1/8 | 2 | 3.2 | 50.8 | 1.26 | 0.85 |
| 3/16 | 1/2 | 4.8 | 12.7 | 0.47 | 0.32 |
| 3/16 | 3/4 | 4.8 | 19.1 | 0.71 | 0.48 |
| 3/16 | 1 | 4.8 | 25.4 | 0.94 | 0.64 |
| 3/16 | 1 1/4 | 4.8 | 31.7 | 1.18 | 0.8 |
| 3/16 | 1 1/2 | 4.8 | 38.1 | 1.42 | 0.96 |
| 3/16 | 2 | 4.8 | 50.8 | 1.9 | 1.28 |
| 3/16 | 3 | 4.8 | 76.2 | 2.85 | 1.91 |

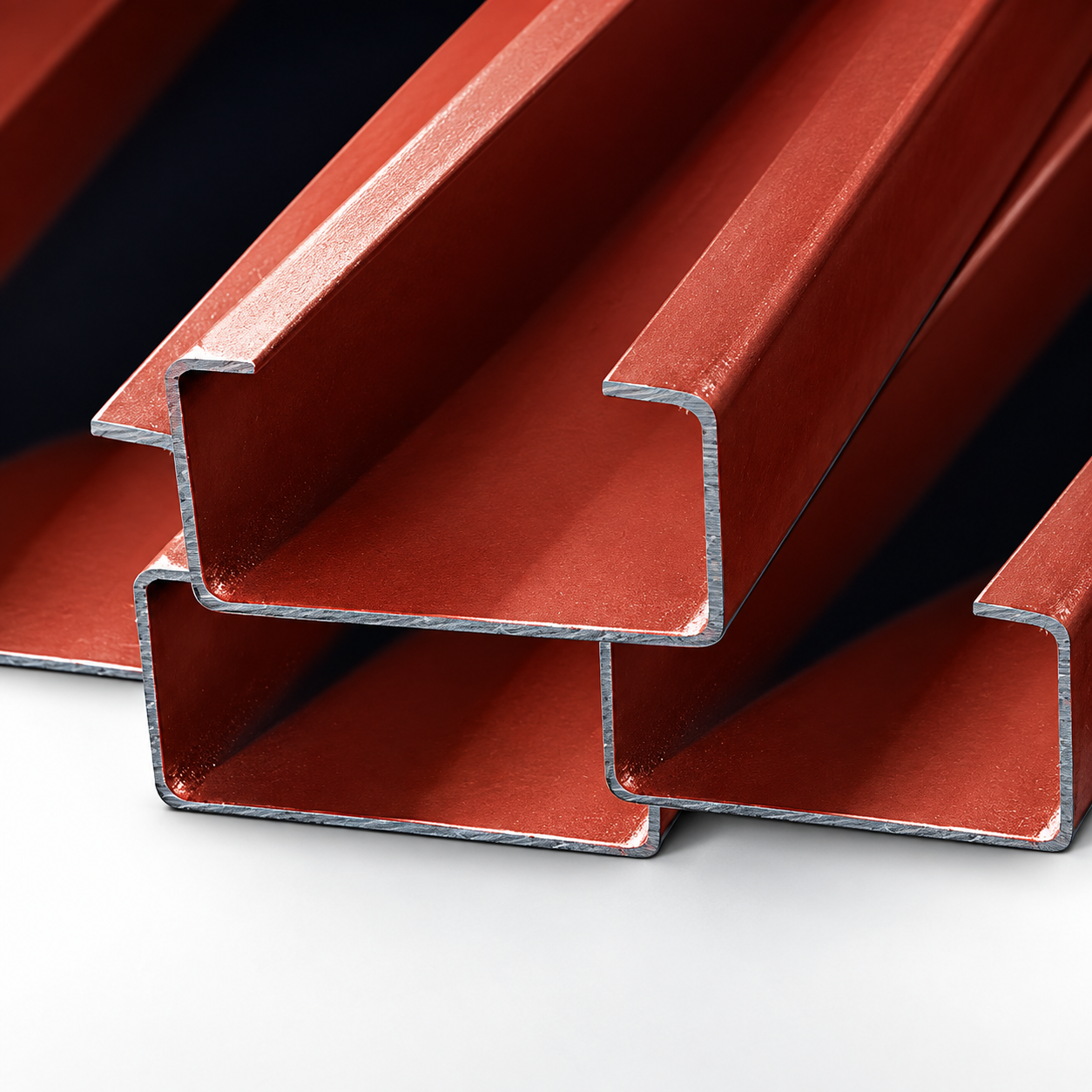

Polines derivados de lámina caliente en forma de «C» (Monten) o «Z», con aplicación estructural en fachadas y cubiertas de edificios, centros comerciales y naves industriales. Punzonamos polín de 6″ a 14″.
Polín C
| Medida | Dimensiones AxBxC | Calibre | Espesor | Largo m | Piezas/paquete | kg/m | CO | AR | GVZ |
|---|---|---|---|---|---|---|---|---|---|
| 3 Cal 14 | 3″ x 1.5″ x 0.5″ | 14 | 0.075 | 6 | 60 | 2.61 | * | * | |
| 3 Cal 16 | 3″ x 1.5″ x 0.5″ | 16 | 0.06 | 6 | 60 | 2.08 | * | * | |
| 4 Cal 14 | 4″ x 2″ x 0.75″ | 14 | 0.075 | 6 | 48 | 3.4 | * | * | |
| 4 Cal 16 | 4″ x 2″ x 0.75″ | 16 | 0.06 | 6 | 48 | 2.71 | * | * | |
| 5 Cal 14 | 5″ x 2″ x 0.75″ | 14 | 0.075 | 6 | 48 | 3.8 | * | * | |
| 6 Cal 12 | 6″ x 2″ x 0.75″ | 12 | 0.105 | 6 | 48 | 5.86 | * | ||
| 6 Cal 14 | 6″ x 2″ x 0.75″ | 14 | 0.075 | 6 | 48 | 4.19 | |||
| 8 Cal 10 | 8″ x 2.75″ x 0.75″ | 10 | 0.135 | 8 | 24 | 9.9 | * | ||
| 8 Cal 12 | 8″ x 2.75″ x 0.75″ | 12 | 0.105 | 8 | 24 | 7.96 | * | ||
| 8 Cal 14 | 8″ x 2.75″ x 0.75″ | 14 | 0.075 | 6 | 24 | 5.7 | * | * | |
| 8 Cal 14 | 8″ x 2.75″ x 0.75″ | 14 | 0.075 | 8 | 24 | 5.7 | |||
| 12 Cal 10 | 12″ x 3.5″ x 0.75″ | 10 | 0.135 | 12 | 12 | 13.6 | * | ||
| 12 Cal 12 | 12″ x 3.5″ x 1″ | 12 | 0.105 | 12 | 12 | 10.99 | * | ||
| 12 Cal 14 | 12″ x 3.5″ x 1″ | 14 | 0.075 | 12 | 12 | 7.87 | |||
| 14 Cal 12 | 14″ x 3.5″ x 1″ | 12 | 0.105 | 14 | 12 | 12.1 | * | * | * |
| 14 Cal 14 | 14″ x 3.5″ x 1″ | 14 | 0.075 | 14 | 12 | 8.7 | * | * | * |
Polín Z
| Medida | Dimensiones AxBxC | Calibre | Espesor | Largo m | Piezas/paquete | kg/m | CO | AR | GVZ |
|---|---|---|---|---|---|---|---|---|---|
| 6 Cal 12 | 6″ x 2″ x 0.75″ | 12 | 0.105 | Especial | 48 | 5.86 | * | * | * |
| 6 Cal 14 | 6″ x 2″ x 0.75″ | 14 | 0.075 | Especial | 48 | 4.19 | * | * | * |
| 8 Cal 10 | 8″ x 2.75″ x 0.75″ | 10 | 0.135 | Especial | 24 | 9.9 | * | * | * |
| 8 Cal 12 | 8″ x 2.75″ x 0.75″ | 12 | 0.105 | Especial | 24 | 7.96 | * | * | * |
Polín C Especial
| Medida | Dimensiones AxBxC | Calibre | Espesor | Largo m | Piezas/paquete | kg/m | CO | AR | GVZ |
|---|---|---|---|---|---|---|---|---|---|
| 4 Cal 14 Patin 1.5″ | 4″ x 1.5″ x 0.5″ | 14 | 0.075 | 6 | 48 | – | * | * | * |
| 4 Cal 16 Patin 1.5″ | 4″ x 1.5″ x 0.5″ | 16 | 0.06 | 6 | 48 | – | * | * | * |
| 6 Cal 14 Patin 2.75″ | 6″ x 2.75″ x 0.75″ | 14 | 0.075 | Especial | – | – | * | * | * |
| 8 Cal 12 Patin 2.5″ | 8″ x 2.5″ x 0.75″ | 12 | 0.105 | 8 | 24 | – | * | * | * |
Línea de perfiles de acero para puertas, ventanas y tableros: perfiles tubulares y perfiles para marcos. Pesos teóricos sujetos a variación de +/- 5%.
Tableros para Puerta
| Perfil | Calibre | Largo m | Peso kg/m | Peso kg/pieza |
|---|---|---|---|---|
| 147/149 | 20 | 0.91 | 6.53 | 5.94 |
| 147/149 | 20 | 1.95 | 6.53 | 12.73 |
| 147/149 | 20 | 2.44 | 6.53 | 15.93 |
| 147/149 | 20 | 3.05 | 6.53 | 19.92 |
Perfiles Ventanas
| Perfil | Calibre | Peso kg/m | Peso kg/pieza |
|---|---|---|---|
| 101 | 18 | 1.22 | 7.32 |
| 101 | 20 | 0.91 | 5.46 |
| 103 | 18 | 1.47 | 8.82 |
| 103 | 20 | 1.08 | 6.48 |
| 106 | 18 | 1.47 | 8.82 |
| 106 | 20 | 1.08 | 6.48 |
| 121 | 18 | 1.36 | 8.16 |
| 121 | 20 | 1 | 6 |
| 122 | 18 | 1.36 | 8.16 |
| 122 | 20 | 1 | 6 |
| 123 | 20 | 1.07 | 6.42 |
| 124 | 18 | 0.68 | 4.08 |
| 126 | 18 | 1.72 | 10.32 |
| 126 | 20 | 1.27 | 7.62 |
Perfil Puertas M
| Perfil | Calibre | Largo m | Peso kg/m | Peso kg/pieza |
|---|---|---|---|---|
| M221 | 20 | 6 | 1.46 | 8.76 |
| M225 | 18 | 5.5 | 1.41 | 7.76 |
| M225 | 20 | 5.5 | 1.03 | 5.67 |
| M300 | 20 | 5.5 | 1.17 | 6.44 |
| M525 | 18 | 5.5 | 2.12 | 11.66 |
| M525 | 20 | 5.5 | 1.56 | 8.58 |
Perfil Puertas K
| Perfil | Calibre | Peso kg/m | Peso kg/pieza |
|---|---|---|---|
| K100 | 18 | 1.58 | 9.48 |
| K100 | 20 | 1.16 | 6.96 |
| K150 | 18 | 1.83 | 10.98 |
| K150 | 20 | 1.34 | 8.04 |
| K200 | 20 | 1.52 | 9.12 |
| K300 | 18 | 2.57 | 15.42 |
| K300 | 20 | 1.88 | 11.28 |
Perfil Puertas P
| Perfil | Calibre | Peso kg/m | Peso kg/pieza |
|---|---|---|---|
| P100 | 18 | 1.36 | 8.16 |
| P100 | 20 | 1.01 | 6.06 |
| P150 | 18 | 1.61 | 9.66 |
| P150 | 20 | 1.19 | 7.14 |
| P200 | 18 | 1.86 | 11.16 |
| P200 | 20 | 1.37 | 8.22 |
| P250 | 18 | 2.09 | 12.54 |
| P250 | 20 | 1.56 | 9.36 |
| P300 | 18 | 2.32 | 13.92 |
| P300 | 20 | 1.73 | 10.38 |
| P400 | 18 | 2.82 | 16.92 |
| P400 | 20 | 2.09 | 12.54 |
Perfil Tubular Rectangular
| Código | Calibre | Peso kg/m | Peso kg/pieza |
|---|---|---|---|
| R-100 | 18 | 0.68 | 4.08 |
| R-100 | 20 | 0.52 | 3.12 |
| R-125 | 18 | 0.92 | 5.52 |
| R-125 | 20 | 0.7 | 4.2 |
| R-175 | 18 | 1.16 | 6.96 |
| R-175 | 20 | 0.88 | 5.28 |
| R-200 | 16 | 1.74 | 10.44 |
| R-200 | 18 | 1.4 | 8.4 |
| R-200 | 20 | 1.06 | 6.36 |
| R-225 | 18 | 1.4 | 8.4 |
| R-225 | 20 | 1.06 | 6.36 |
| R-249 | 18 | 1.77 | 10.62 |
| R-249 | 20 | 1.34 | 8.04 |
| R-250 | 18 | 1.94 | 11.64 |
| R-300 | *16 | 2.65 | 15.9 |
| R-300 | 18 | 2.13 | 12.78 |
| R-300 | 20 | 1.61 | 9.66 |
| R-400 | *16 | 3.26 | 19.56 |
| R-400 | 18 | 2.61 | 15.66 |
| R-400 | 20 | 1.97 | 11.82 |
Perfil Tubular Cuadrado
| Código | Calibre | Peso kg/m | Peso kg/pieza |
|---|---|---|---|
| C-050 | 16 | 0.55 | 3.3 |
| C-050 | 18 | 0.45 | 2.7 |
| C-050 | 20 | 0.34 | 2.04 |
| C-050 | *22 | 0.28 | 1.68 |
| C-075 | 16 | 0.86 | 5.16 |
| C-075 | 18 | 0.7 | 4.2 |
| C-075 | 20 | 0.52 | 3.12 |
| C-075 | 22 | 0.44 | 2.64 |
| C-100 | 16 | 1.18 | 7.08 |
| C-100 | 18 | 0.94 | 5.64 |
| C-100 | 20 | 0.7 | 4.2 |
| C-125 | 16 | 1.49 | 8.94 |
| C-125 | 18 | 1.19 | 7.14 |
| C-125 | 20 | 0.88 | 5.28 |
| C-150 | 16 | 1.8 | 10.8 |
| C-150 | 18 | 1.44 | 8.64 |
| C-150 | 20 | 1.06 | 6.36 |
| C-200 | 16 | 2.43 | 14.58 |
| C-200 | *18 | 1.94 | 11.64 |
| C-200 | *20 | 1.43 | 8.58 |
| C-250 | 16 | 3.06 | 18.36 |
Diferentes tipos de aceros: estructurales, de alta resistencia, para recipientes a presión y alto carbono, con una amplia gama de espesores y medidas, en hoja o rollo.

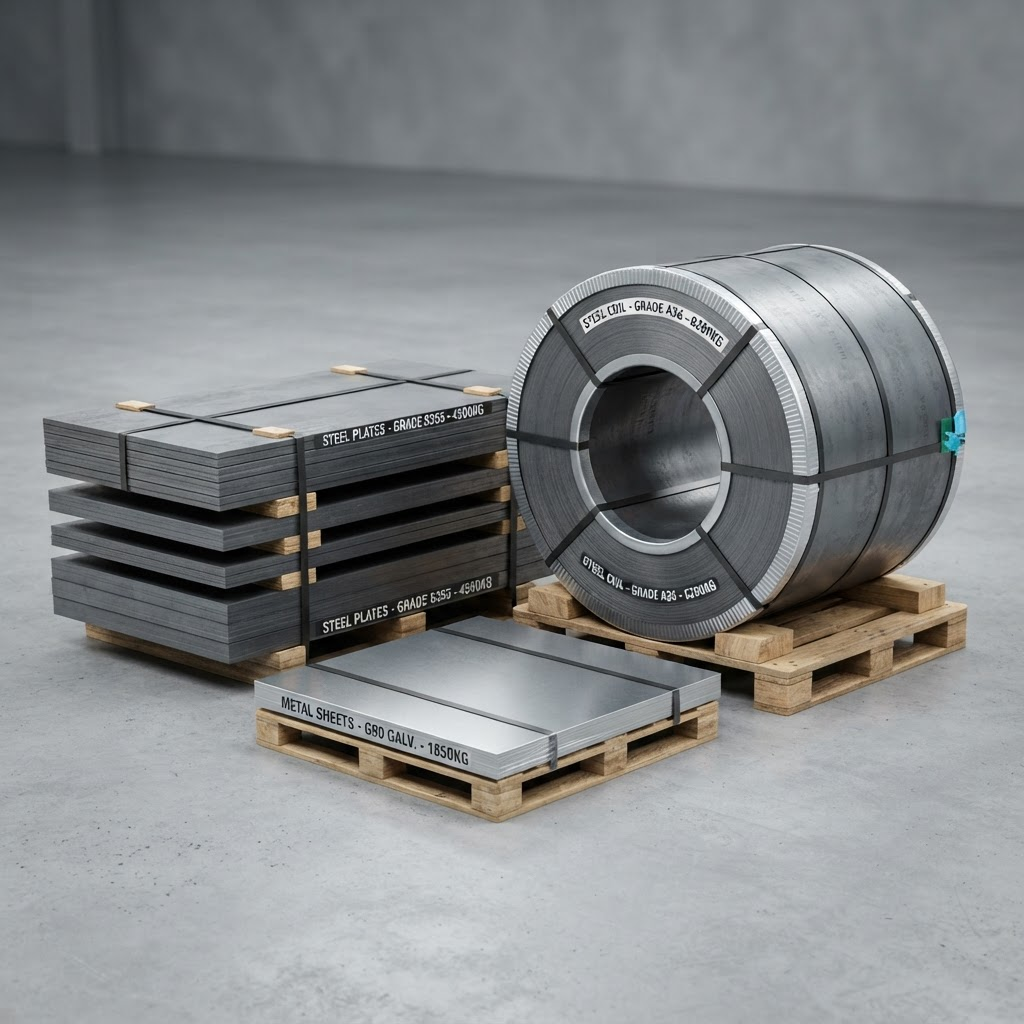

Placa Hoja y Rollo
| Espesor Pulg. | Milésimas | Espesor mm. | Kg/m² | Kg/pie² | 3x6 | 3x8 | 3x10 | 4x8 | 4x10 | 5x10 | 5x20 | 6x10 | 6x20 | 8x20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16" | 188 | 4.76 | 37.39 | 3.47 | 62.52 | 83.36 | 104.2 | 111.14 | 138.93 | 173.66 | 347.32 | 208.39 | 416.79 | 555.72 |
| 1/4" | 250 | 6.35 | 49.85 | 4.63 | 83.36 | 111.14 | 138.93 | 148.19 | 185.24 | 231.55 | 463.1 | 277.86 | 555.72 | 740.96 |
| 5/16" | 313 | 7.94 | 62.31 | 5.79 | 104.2 | 138.93 | 173.66 | 185.24 | 231.55 | 289.44 | 578.87 | 347.32 | 694.65 | 926.2 |
| 3/8" | 375 | 9.53 | 74.77 | 6.95 | 125.04 | 166.72 | 208.39 | 222.29 | 277.86 | 347.32 | 694.65 | 416.79 | 833.58 | 1111.44 |
| 7/16" | 438 | 11.11 | 87.23 | 8.1 | 145.88 | 194.5 | 243.13 | 259.34 | 324.17 | 405.21 | 810.42 | 486.25 | 972.51 | 1296.68 |
Láminas de acero de alta resistencia que van desde calibre 3 hasta 16, incluyendo lámina antiderrapante y lámina decapada y sin decapar.
Lámina Rolada Caliente
| Calibre | Espesor pulg. | Espesor mm. | Kg/m² | Kg/pie² | 3x6 | 3x8 | 3x10 | 4x8 | 4x10 | 5x10 |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.224 | 5.69 | 4.15 | 44.67 | 74.69 | 99.59 | 124.49 | 132.79 | 165.99 | - |
| 6 | 0.194 | 4.94 | 3.6 | 38.78 | 64.85 | 86.46 | 108.08 | 115.29 | 144.11 | - |
| 7 | 0.179 | 4.55 | 3.32 | 35.72 | 59.73 | 79.64 | 99.55 | 106.19 | 132.73 | - |
| 8 | 0.164 | 4.18 | 3.05 | 32.81 | 54.87 | 73.16 | 91.45 | 97.55 | 121.94 | - |
| 9 | 0.15 | 3.8 | 2.77 | 29.83 | 49.88 | 66.51 | 83.14 | 88.68 | 110.85 | - |
| 10 | 0.135 | 3.42 | 2.49 | 26.85 | 44.9 | 59.86 | 74.83 | 79.81 | 99.77 | 124.71 |
| 11 | 0.12 | 3.04 | 2.22 | 23.86 | 39.91 | 53.21 | 66.51 | 70.95 | 88.68 | 110.85 |
| 12 | 0.105 | 2.66 | 1.94 | 20.88 | 34.92 | 46.56 | 58.2 | 62.08 | 77.6 | 97 |
Lámina Antiderrapante
| Calibre/Espesor | Espesor pulg. | Espesor mm. | Peso kg/pie² | Peso kg/m² | 3x8 | 3x10 | 4x8 | 4x10 |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.5 | 12.7 | 9.74 | 104.83 | 233.73 | 292.16 | 311.64 | 389.55 |
| 3/8 | 0.375 | 9.53 | 7.42 | 79.74 | 177.99 | 222.49 | 237.32 | 296.65 |
| 5/16 | 0.313 | 7.94 | 6.26 | 67.31 | 150.23 | 187.79 | 200.31 | 250.38 |
| 1/4 | 0.25 | 6.35 | 5.1 | 54.87 | 122.47 | 153.09 | 163.29 | 204.12 |
Acero laminado a bajas temperaturas con acabado refinado y exactitud dimensional. Contamos con servicio de corte a largo, especial y blanks.
Lámina Rolada Frío
| Calibre | Espesor pulg. | Espesor mm. | Kg/pie² | Kg/m² | 3x8 | 3x10 | 4x8 | 4x10 |
|---|---|---|---|---|---|---|---|---|
| 16 | 0.0598 | 1.52 | 1.11 | 11.93 | 26.6 | 33.26 | 35.47 | 44.34 |
| 18 | 0.0478 | 1.21 | 0.88 | 9.5 | 21.18 | 26.47 | 28.24 | 35.3 |
| 20 | 0.0359 | 0.91 | 0.66 | 7.14 | 15.93 | 19.91 | 21.24 | 26.55 |
| 22 | 0.0299 | 0.76 | 0.55 | 5.97 | 13.3 | 16.63 | 17.74 | 22.17 |
| 24 | 0.0239 | 0.61 | 0.44 | 4.79 | 10.68 | 13.35 | 14.24 | 17.8 |
| 26 | 0.0179 | 0.45 | 0.33 | 3.53 | 7.88 | 9.85 | 10.5 | 13.13 |
| 28 | 0.0149 | 0.38 | 0.28 | 2.98 | 6.65 | 8.31 | - | - |
| 30 | 0.012 | 0.3 | 0.22 | 2.36 | 5.25 | 6.56 | - | - |

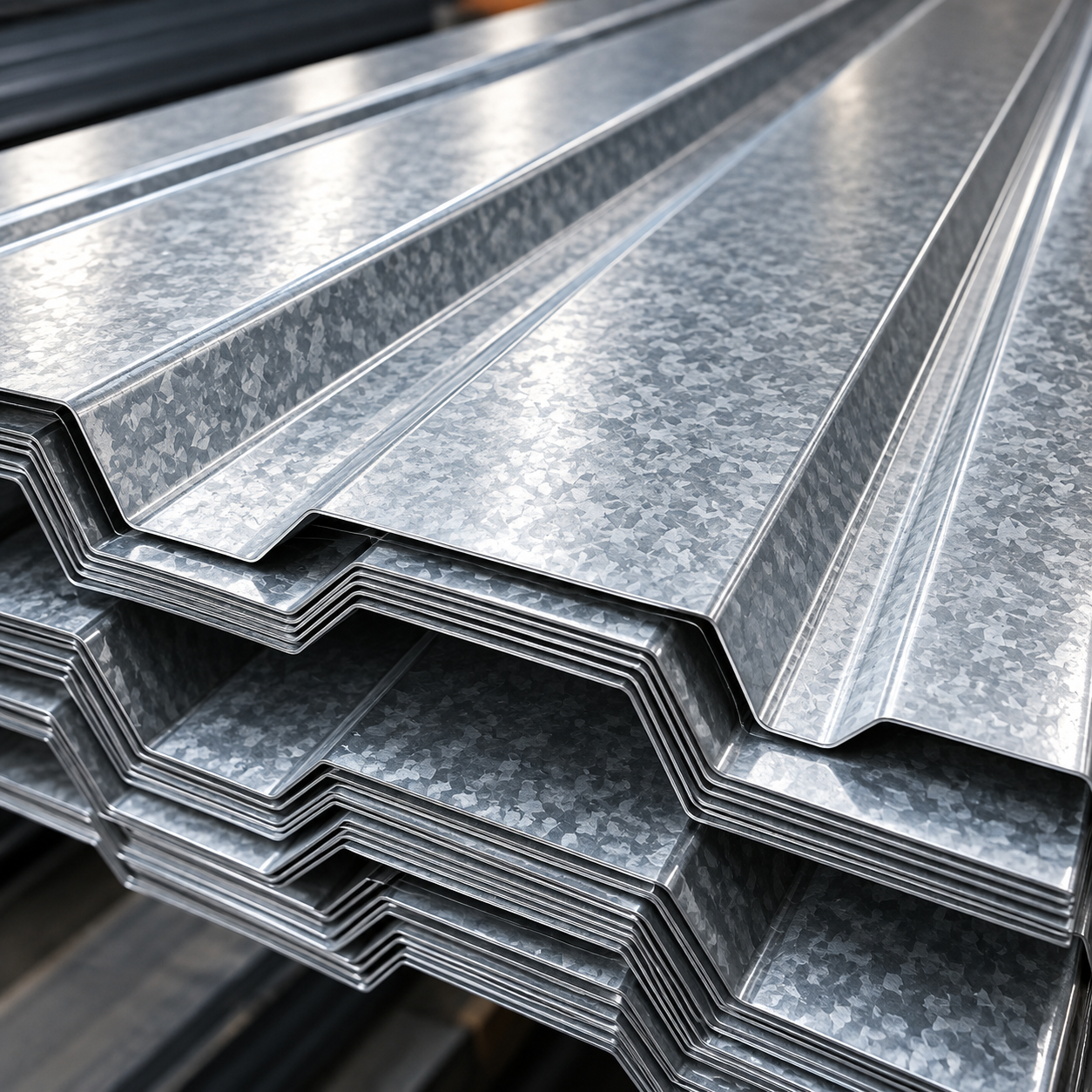

Láminas de acero con recubrimiento anticorrosión que prolonga su vida útil: galvanizada, pintro o aluminizada, lisa o acanalada (rectangular y ondulada).
Lámina Galv Alum Pintada
| Calibre | Espesor pulg. | Espesor mm. | Peso 3' kg/m | Peso 4' kg/m | Kg/m² | 3x6 | 3x8 | 3x10 | 3x12 | 4x8 | 4x10 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.1359 | 3.45 | 24.77 | - | 27.11 | 45.33 | 60.44 | 75.55 | 90.66 | - | - |
| 12 | 0.1061 | 2.69 | 19.32 | 25.76 | 21.15 | 35.36 | 47.15 | 58.93 | 70.72 | 62.86 | 78.58 |
| 14 | 0.0762 | 1.94 | 13.87 | 18.5 | 15.18 | 25.38 | 33.84 | 42.3 | 50.76 | 45.12 | 56.4 |
| 16 | 0.0613 | 1.56 | 11.15 | 14.87 | 12.2 | 20.4 | 27.2 | 34 | 40.8 | 36.27 | 45.33 |
| 18 | 0.0493 | 1.25 | 8.97 | 11.96 | 9.82 | 16.42 | 21.89 | 27.37 | 32.84 | 29.19 | 36.49 |
| 20 | 0.0374 | 0.95 | 6.8 | 8.91 | 7.44 | 12.44 | 16.59 | 20.73 | 24.88 | 22.12 | 27.64 |
| 22 | 0.0314 | 0.8 | 5.64 | 7.61 | 6.24 | 10.43 | 13.91 | 17.38 | 20.86 | 18.54 | 23.18 |
| 24 | 0.0224 | 0.57 | 4.2 | 5.6 | 4.44 | 7.43 | 9.91 | 12.38 | 14.86 | 13.21 | 16.51 |
Lámina Acanalada
| Calibre | Espesor pulg. | Espesor mm. | Peso 3' kg/m | Peso 4' kg/m | 3x6 | 3x8 | 3x10 | 3x12 | 4x8 | 4x10 |
|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 0.0374 | 0.95 | 6.8 | 8.91 | 12.43 | 16.57 | 20.72 | 24.86 | 22.1 | 27.62 |
| 22 | 0.0314 | 0.8 | 5.64 | 7.61 | 10.43 | 13.91 | 17.38 | 20.86 | 18.54 | 23.18 |
| 24 | 0.0224 | 0.57 | 4.2 | 5.6 | 7.68 | 10.24 | 12.81 | 15.37 | 13.66 | 17.08 |
| 26 | 0.0194 | 0.49 | 3.52 | 4.69 | 6.43 | 8.57 | 10.71 | 12.86 | 11.43 | 14.29 |
| 28 | 0.0164 | 0.42 | 2.97 | 3.96 | 5.43 | 7.24 | 9.05 | 10.86 | 9.65 | 12.06 |
| 30 | 0.0135 | 0.34 | 2.44 | - | 4.46 | 5.95 | 7.44 | 8.92 | - | - |
| 32 | 0.0112 | 0.28 | 2.02 | - | 3.7 | 4.93 | 6.17 | 7.4 | - | - |
Línea PASA de tecnología impermeable: membranas, mallas, adhesivos y recubrimientos para sistemas de impermeabilización en frío y caliente.
Medidas y especificaciones
| Producto | Tipo | Presentación | Uso |
|---|---|---|---|
| PASA® Malla | Refuerzo poliéster | Rollo | Impermeabilización en frío |
| Membrana TPO UN-55 | TPO no reforzada | Rollo | Detalles críticos |
| Adhesivo TPO | Goma sintética | Cubeta | Unión de membrana |
| Aislaflex Híbrido | Poliuretano-acrílico | Cubeta | Reflectivo IRS 106 |
| Imper NRG 5 años | Acrílico | Cubeta | Reflectivo IRS 107 |

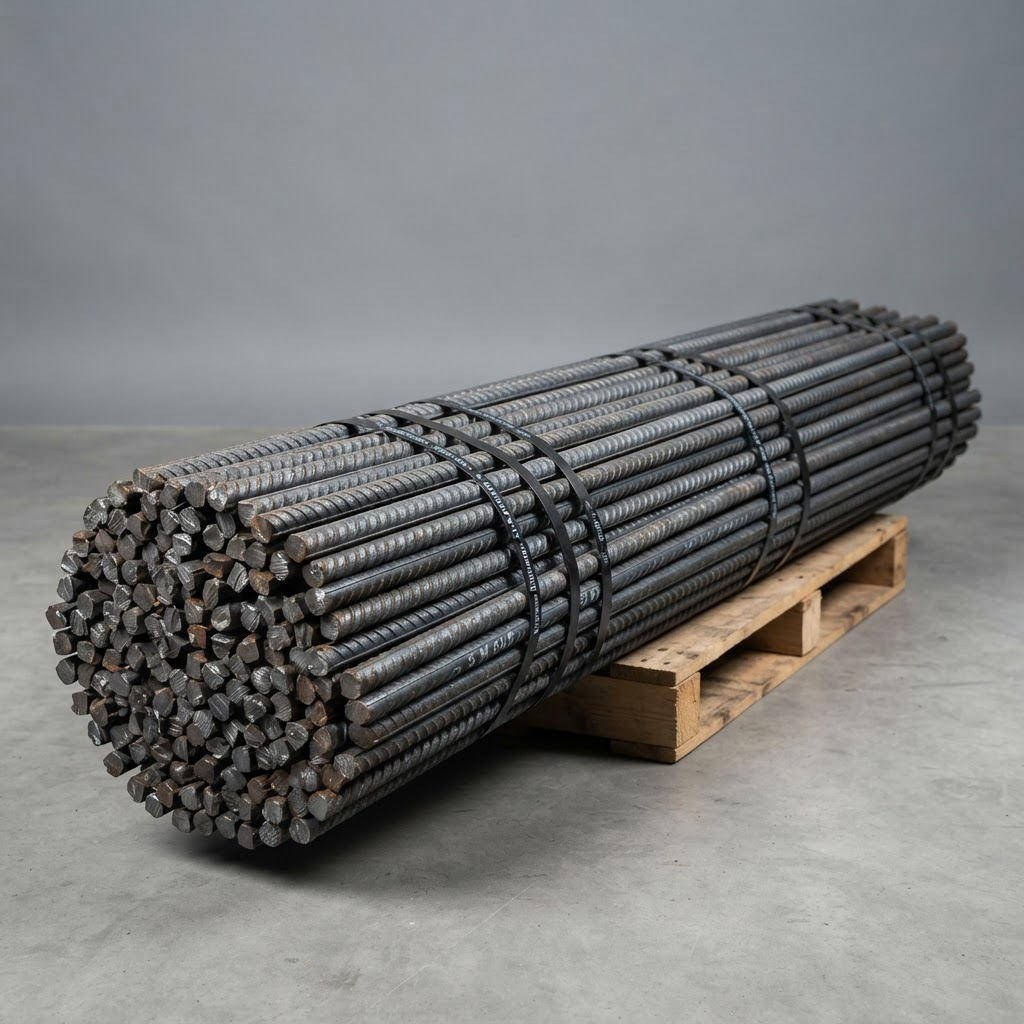

Varilla corrugada de refuerzo en largos de 9.15 m (3/8" y 1/2") y de 5/8" a 1 1/2" en 12 m. También en calibre 2 1/4" con límite elástico mínimo 75 KSI. Varilla especial bajo pedido.
Varilla Corrugada
| No. designación | Calibre pulg. | Calibre mm. | Peso kg/m | Peso lb/m | Área mm² | Perímetro mm |
|---|---|---|---|---|---|---|
| 3 | 3/8 | 9.5 | 0.56 | 0.38 | 71 | 29.8 |
| 4 | 1/2 | 12.7 | 0.99 | 0.67 | 127 | 39.9 |
| 5 | 5/8 | 15.9 | 1.55 | 1.04 | 198 | 50 |
| 6 | 3/4 | 19.1 | 2.24 | 1.5 | 285 | 60 |
| 8 | 1 | 25.4 | 3.97 | 2.67 | 507 | 79.8 |
| 10 | 1 1/4 | 31.8 | 6.23 | 4.3 | 794 | 99.9 |
| 12 | 1 1/2 | 38.1 | 8.94 | 5.99 | 1140 | 119.7 |

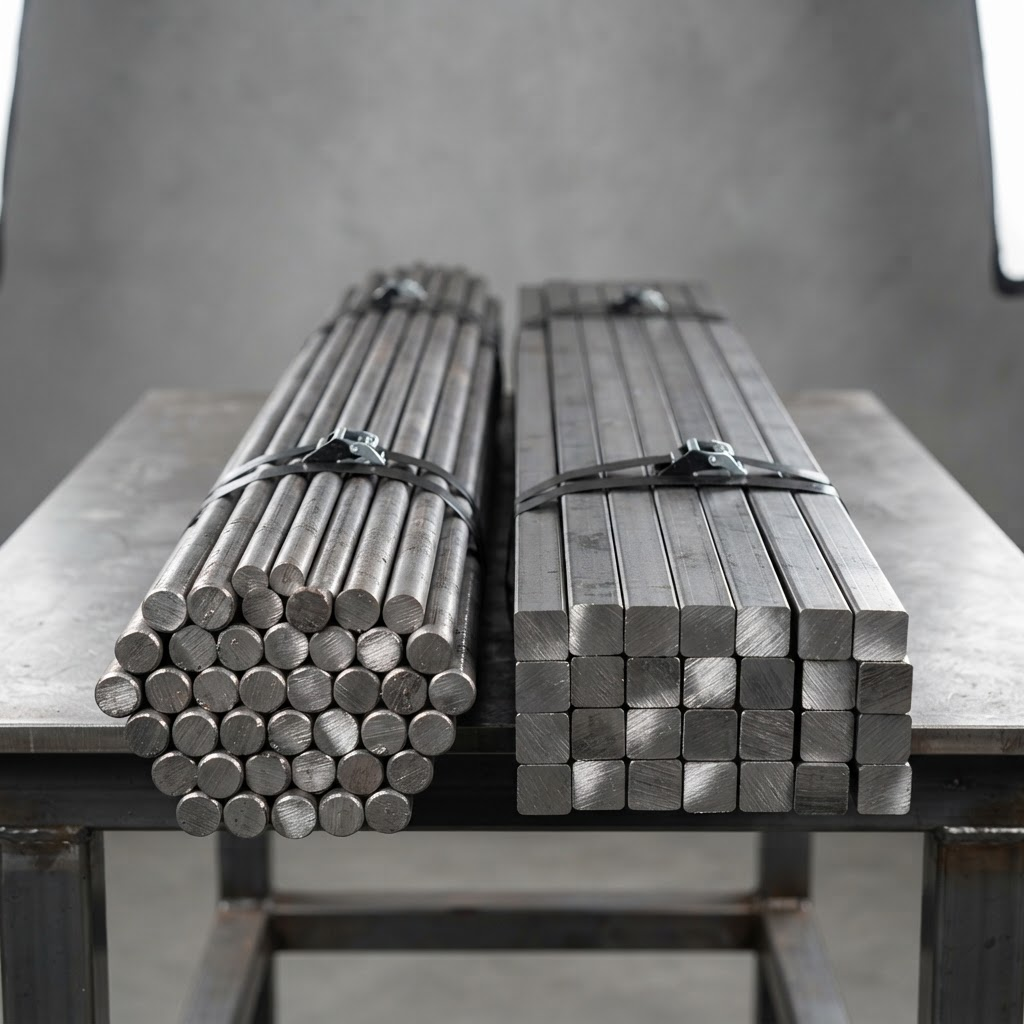

Barra sólida laminada en caliente fabricada en grado A-36, enfocada para forja, estructuras y herrería, en perfil redondo, cuadrado y cuadrado retorcido.
Redondo Cuadrado Retorcido
| Medida pulg. | Milésimas | mm | Redondo kg/m | Redondo lb/pie | Cuadrado kg/m | Cuadrado lb/pie | Retorcido kg/m | Retorcido lb/pie |
|---|---|---|---|---|---|---|---|---|
| 12 mm. | 0.472 | 12 | - | - | 1.14 | 0.77 | 1.14 | 0.77 |
| 3/8 | 0.375 | 9.53 | 0.56 | 0.38 | 0.71 | 0.48 | 0.71 | 0.48 |
| 1/2 | 0.5 | 12.7 | 0.99 | 0.67 | 1.26 | 0.85 | 1.26 | 0.85 |
| 5/8 | 0.625 | 15.88 | 1.55 | 1.04 | 1.98 | 1.33 | 1.98 | 1.33 |
| 3/4 | 0.75 | 19.05 | 2.24 | 1.5 | 2.85 | 1.91 | - | - |
| 7/8 | 0.875 | 22.23 | 3.04 | 2.04 | - | - | - | - |
| 1 | 1 | 25.4 | 3.97 | 2.67 | 5.06 | 3.4 | - | - |
| 1 1/8 | 1.125 | 28.58 | 5.03 | 3.38 | - | - | - | - |
| 1 1/4 | 1.25 | 31.75 | 6.21 | 4.17 | 7.91 | 5.31 | - | - |
| 1 3/8 | 1.375 | 34.93 | 7.51 | 5.05 | - | - | - | - |
| 1 1/2 | 1.5 | 38.1 | 8.94 | 6.01 | 11.38 | 7.65 | - | - |
| 1 3/4 | 1.75 | 44.45 | 12.17 | 8.18 | - | - | - | - |
| 2 | 2 | 50.8 | 15.9 | 10.68 | 20.24 | 13.6 | - | - |
Alambrón y derivados para construcción e industria agropecuaria: alambre galvanizado y recocido, estribos, clavos, malla electrosoldada, armadura para vigueta y varilla recta grado 42.
Varilla Recta Grado 42
| Calibre # | Diámetro pulg. | Diámetro mm | Peso kg/m | Peso pieza 12m kg | Pzas aprox/atado 2t |
|---|---|---|---|---|---|
| 3 | 3/8" | 9.5 | 0.56 | 6.72 | 298 |
| 4 | 1/2" | 12.7 | 0.994 | 11.93 | 168 |
| 5 | 5/8" | 15.9 | 1.552 | 18.62 | 108 |
| 6 | 3/4" | 19.1 | 2.235 | 26.82 | 74 |
| 8 | 1" | 25.4 | 3.973 | 47.68 | 42 |
| 10 | 1 1/4" | 31.8 | 6.225 | 74.7 | 26 |
Malla Electrosoldada
| Presentación | Producto | Área m² | Dimensiones (ancho x largo) m |
|---|---|---|---|
| Rollo | R-6x6-10/10 | 100 | 2.5 x 40 |
| Rollo | R-6x6-08/08 | 100 | 2.5 x 40 |
| Rollo | R-6x6-06/06 | 100 | 2.5 x 40 |
| Rollo | R-6x6-04/04 | 100 | 2.5 x 40 |
| Hoja | H-6x6-10/10 | 15 | 2.5 x 6 |
| Hoja | H-6x6-08/08 | 15 | 2.5 x 6 |
| Hoja | H-6x6-06/06 | 15 | 2.5 x 6 |
| Hoja | H-6x6-04/04 | 15 | 2.5 x 6 |
| Hoja | H-6x6-03/03 * | 15 | 2.5 x 6 |
| Hoja | H-6x6-02/02 * | 15 | 2.5 x 6 |
Alambre Galvanizado
| Calibre | Diámetro pulg. | Diámetro mm. | Área mm² | Peso kg/m | Rendimiento m/kg |
|---|---|---|---|---|---|
| 10 | 0.135 | 3.43 | 9.23 | 0.072 | 13.9 |
| 12 | 0.106 | 2.68 | 5.64 | 0.044 | 22.8 |
| 14 | 0.08 | 2.03 | 3.24 | 0.025 | 39.5 |
| 16 | 0.063 | 1.59 | 1.98 | 0.015 | 64.7 |
Alambre Recocido
| Calibre | Diámetro mm. | Diámetro pulg. | Rollo int cm | Rollo int pulg. | Rollo ext cm | Rollo ext pulg. | Peso kg |
|---|---|---|---|---|---|---|---|
| 16 | 1.59 | 0.063 | 30 | 11.8 | 50 | 19.7 | 50 |
Alambrón
| Calibre mm | Calibre pulg. |
|---|---|
| 5.5 | 0.218 |
| 6.3 | 0.25 |
Gran variedad de tubería de alta calidad para uso estructural, industrial y de conducción: tubería mecánica cédula 30 y 40 (A513) y tubería industrial.
Tubería Industrial
| Diám ext nominal pulg. | Diám ext decimal pulg. | Diám ext mm | Cal 20 | Cal 18 | Cal 16 | Cal 14 | Cal 13 | Cal 12 | Cal 11 | Cal 9 | 3/16 | 1/4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.5 | 12.7 | 0.27 | 0.35 | - | - | - | - | - | - | - | - |
| 5/8 | 0.625 | 15.88 | 0.34 | 0.45 | - | - | - | - | - | - | - | - |
| 3/4 | 0.75 | 19.05 | 0.41 | 0.55 | 0.68 | - | - | - | - | - | - | - |
| 0.84 | 21.34 | - | - | - | - | 1.07 * | - | - | - | - | - | |
| 7/8 | 0.875 | 22.23 | 0.48 | 0.64 | 0.80 * | 0.99 * | - | - | - | - | - | - |
| 1 | 1 | 25.4 | 0.55 | 0.74 | 0.92 | - | - | - | - | - | - | |
| 1 1/4 | 1.25 | 31.75 | 0.69 | 0.93 | 1.17 | 1.45 * | - | - | - | - | - | - |
| 1.315 | 33.4 | 0.73 * | 0.99 * | 1.24 * | - | - | 2.09 * | - | - | - | - | |
| 1 1/2 | 1.5 | 38.1 | 0.83 | 1.13 | 1.42 | 1.76 * | - | - | - | - | - | - |
| 1 3/4 | 1.75 | 44.45 | 0.98 | 1.33 | 1.66 * | 2.07 * | - | - | - | - | - | - |
| 1 7/8 | 1.875 | 47.63 | 1.05 * | - | - | - | - | 3.06 * | - | - | - | - |
| 2 | 2 | 50.8 | 1.12 | 1.52 | 1.91 | 2.38 * | - | - | - | - | - | - |
| 2 1/8 | 2.125 | 53.97 | - | - | - | 2.54 * | - | - | - | - | - | - |
| 2 1/4 | 2.25 | 57.15 | - | 1.71 | 2.16 | 2.69 * | - | - | - | - | - | - |
| 2 1/2 | 2.5 | 63.5 | - | 1.91 | 2.4 | 3.02 * | - | - | - | - | - | - |
| 2 3/4 | 2.75 | 69.85 | - | - | - | - | - | - | 5.02 * | - | - | - |
| 2 7/8 | 2.875 | 73.03 | - | - | - | - | - | - | - | 6.41 * | - | - |
| 3 | 3 | 76.2 | - | 2.3 | 2.9 | 3.62 * | - | - | - | - | - | - |
| 3 1/2 | 3.5 | 88.9 | - | - | - | - | 4.88 * | - | - | - | 9.90 * | - |
| 4 1/2 | 4.5 | 114.3 | - | - | - | - | - | - | - | - | 19.23 * | 16.89 * |
| 4 3/4 | 4.75 | 120.65 | - | - | - | - | - | - | 8.83 * | - | - | - |
Complementos de diversos calibres, herrajes, electroforjados y para soldar: lámina translúcida, plafón y rejilla electroforjada.
Medidas y especificaciones
| Producto | Especificación | Presentación | Uso |
|---|---|---|---|
| Lámina translúcida | Acrílica c/ fibra | Hoja | Iluminación natural |
| Electrodo 6013 / 7018 | 1/8" – 5/32" | Caja / kg | Soldadura |
| Disco de corte | 4 1/2" – 9" | Pieza | Corte / desbaste |
| Rejilla electroforjada | Varios claros | Panel | Pisos y pasarelas |
Rejilla diseñada para permitir el paso de líquidos, aire y luz, con tamaños de hasta 1.2 x 9 m. Ideal para pisos industriales, plataformas marítimas, minería y más por su resistencia y ligereza.
Rejilla Irving Pesado
| Tipo solera | 250 kg/cm² pulg | 250 mm | 200 kg/cm² pulg | 200 mm | 150 kg/cm² pulg | 150 mm | Tráfico auto pulg | Tráfico auto mm | Montacargas 5t pulg | 5t mm | Montacargas 3t pulg | 3t mm | Montacargas 1t pulg | 1t mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 X 1/4 | 12 | 304 | 10 | 254 | 9 | 228 | 12 | 304 | 7 | 177 | 6 | 152 | 7 | 177 |
| 1 X 3/8 | 14 | 355 | 13 | 330 | 11 | 279 | 16 | 406 | 9 | 228 | 8 | 203 | 9 | 228 |
| 1 1/4 X 1/4 | 15 | 381 | 13 | 330 | 12 | 304 | 17 | 431 | 9 | 228 | 8 | 203 | 10 | 254 |
| 1 1/4 X 3/8 | 18 | 457 | 16 | 406 | 14 | 355 | 23 | 584 | 12 | 304 | 10 | 254 | 14 | 355 |
| 1 1/2 X 1/4 | 18 | 457 | 16 | 406 | 14 | 355 | 23 | 584 | 11 | 279 | 10 | 254 | 13 | 330 |
| 1 1/2 X 3/8 | 22 | 558 | 20 | 508 | 18 | 457 | 30 | 762 | 14 | 355 | 13 | 330 | 19 | 482 |
| 1 3/4 X 1/4 | 21 | 533 | 19 | 482 | 17 | 431 | 29 | 736 | 14 | 355 | 12 | 304 | 17 | 431 |
| 1 3/4 X 3/8 | 26 | 660 | 23 | 584 | 21 | 533 | 38 | 965 | 18 | 457 | 17 | 431 | 25 | 635 |
| 2 X 1/4 | 24 | 609 | 22 | 558 | 20 | 508 | 37 | 939 | 16 | 406 | 15 | 381 | 22 | 558 |
| 2 X 3/8 | 30 | 762 | 28 | 711 | 26 | 660 | 46 | 1168 | 22 | 558 | 21 | 533 | 33 | 838 |
| 2 1/4 X 1/4 | 27 | 685 | 25 | 635 | 23 | 584 | 45 | 1143 | 19 | 482 | 18 | 457 | 28 | 711 |
| 2 1/4 X 3/8 | 34 | 863 | 32 | 812 | 31 | 787 | 53 | 1346 | 26 | 660 | 26 | 660 | 41 | 1041 |
| 2 1/2 X 1/4 | 30 | 762 | 28 | 711 | 27 | 685 | 52 | 1320 | 22 | 558 | 22 | 558 | 34 | 863 |
| 2 1/2 X 3/8 | 40 | 1016 | 38 | 965 | 36 | 914 | 59 | 1498 | 31 | 787 | 31 | 787 | 50 | 1270 |
| 3 X 1/4 | 39 | 990 | 37 | 939 | 35 | 889 | 62 | 1574 | 30 | 762 | 30 | 762 | 49 | 1244 |
| 3 X 3/8 | 52 | 1320 | 50 | 1270 | 49 | 1244 | 71 | 1803 | 43 | 1092 | 44 | 1117 | 61 | 1549 |
| 3 1/2 X 1/4 | 48 | 1219 | 46 | 1168 | 45 | 1143 | 72 | 1828 | 39 | 990 | 40 | 1016 | 62 | 1574 |
| 3 1/2 X 3/8 | 60 | 1524 | 60 | 1524 | 60 | 1524 | 83 | 2108 | 56 | 1422 | 58 | 1473 | 71 | 1803 |
| 4 X 1/4 | 59 | 1498 | 58 | 1473 | 57 | 1447 | 83 | 2108 | 50 | 1270 | 51 | 1295 | 71 | 1803 |
| 4 X 3/8 | 68 | 1727 | 68 | 1727 | 69 | 1752 | 95 | 2413 | 66 | 1676 | 68 | 1727 | 81 | 2057 |
| 4 1/2 X 1/4 | 69 | 1752 | 69 | 1752 | 70 | 1778 | 96 | 2438 | 61 | 1549 | 64 | 1625 | 82 | 2082 |
| 4 1/2 X 3/8 | 71 | 1803 | 71 | 1803 | 72 | 1828 | 96 | 2438 | 69 | 1752 | 71 | 1803 | 84 | 2133 |
| 5 X 1/4 | 75 | 1905 | 75 | 1905 | 75 | 1905 | 96 | 2438 | 72 | 1828 | 74 | 1879 | 89 | 2260 |
| 5 X 3/8 | 85 | 2159 | 85 | 2159 | 86 | 2184 | 96 | 2438 | 83 | 2108 | 85 | 2159 | 96 | 2438 |
Rejilla Irving Ligero
| Solera | Peralte mm | Espesor mm | Carga | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 X 1/8 | 19.05 | 3.175 | U | 2182.7 | 1157.519 | 656.244 | 415.788 | - | - | - | - | - | - |
| 3/4 X 1/8 | 19.05 | 3.175 | Du | 1.491 | 3.825 | 6.819 | 10.627 | - | - | - | - | - | - |
| 3/4 X 1/8 | 19.05 | 3.175 | C | 604.258 | 430.939 | 324.261 | 258.866 | - | - | - | - | - | - |
| 3/4 X 1/8 | 19.05 | 3.175 | Dc | 1.184 | 3.059 | 5.459 | 8.508 | - | - | - | - | - | - |
| 3/4 X 3/16 | 19.05 | 4.762 | U | 3276.493 | 1738.721 | 984.366 | 621.734 | - | - | - | - | - | - |
| 3/4 X 3/16 | 19.05 | 4.762 | Du | 1.491 | 3.825 | 6.819 | 10.627 | - | - | - | - | - | - |
| 3/4 X 3/16 | 19.05 | 4.762 | C | 907.666 | 646.468 | 486.483 | 387.113 | - | - | - | - | - | - |
| 3/4 X 3/16 | 19.05 | 4.762 | Dc | 1.184 | 3.059 | 5.459 | 8.508 | - | - | - | - | - | - |
| 1/8 X 1 | 25.4 | 3.175 | U | 3886.258 | 2060.153 | 1166.285 | 738.861 | 511.578 | 377.113 | - | - | - | - |
| 1/8 X 1 | 25.4 | 3.175 | Du | 1.112 | 2.862 | 5.123 | 7.974 | 11.48 | 15.612 | - | - | - | - |
| 1/8 X 1 | 25.4 | 3.175 | C | 1076.392 | 766.371 | 576.339 | 459.713 | 383.051 | 328.608 | - | - | - | - |
| 1/8 X 1 | 25.4 | 3.175 | Dc | 0.921 | 2.296 | 4.088 | 6.373 | 9.168 | 12.498 | - | - | - | - |
| 1 X 3/16 | 25.4 | 4.762 | U | 5820.994 | 3089.846 | 1748.357 | 1107.798 | 769.04 | 563.145 | - | - | - | - |
| 1 X 3/16 | 25.4 | 4.762 | Du | 1.112 | 2.862 | 5.123 | 7.974 | 11.48 | 15.612 | - | - | - | - |
| 1 X 3/16 | 25.4 | 4.762 | C | 1611.495 | 1150.125 | 864.418 | 689.419 | 573.832 | 491.783 | - | - | - | - |
| 1 X 3/16 | 25.4 | 4.762 | Dc | 0.921 | 2.296 | 4.088 | 6.373 | 9.168 | 12.498 | - | - | - | - |
| 1 1/4 X 1/8 | 31.75 | 3.175 | U | 6065.449 | 3222.171 | 1822.529 | 1154.649 | 799.872 | 587.557 | 446.838 | - | - | - |
| 1 1/4 X 1/8 | 31.75 | 3.175 | Du | 0.921 | 2.296 | 4.088 | 6.373 | 9.168 | 12.498 | 16.293 | - | - | - |
| 1 1/4 X 1/8 | 31.75 | 3.175 | C | 1680.65 | 1197.311 | 900.601 | 717.393 | 598.11 | 512.668 | 448.343 | - | - | - |
| 1 1/4 X 1/8 | 31.75 | 3.175 | Dc | 0.744 | 1.827 | 3.274 | 5.108 | 7.341 | 9.99 | 13.052 | - | - | - |
| 1 1/4 X 3/16 | 31.75 | 4.762 | U | 9097.488 | 4828.567 | 2732.724 | 1729.532 | 1199.424 | 881.502 | 672.096 | - | - | - |
| 1 1/4 X 3/16 | 31.75 | 4.762 | Du | 0.921 | 2.296 | 4.088 | 6.373 | 9.168 | 12.498 | 16.293 | - | - | - |
| 1 1/4 X 3/16 | 31.75 | 4.762 | C | 2519.161 | 1796.593 | 1350.901 | 1076.532 | 896.422 | 768.257 | 671.211 | - | - | - |
| 1 1/4 X 3/16 | 31.75 | 4.762 | Dc | 0.744 | 1.827 | 3.274 | 5.108 | 7.341 | 9.99 | 13.052 | - | - | - |
| 1 1/2 X 1/8 | 38.1 | 3.175 | U | 8735.688 | 4634.961 | 2624.977 | 1660.243 | 1149.831 | 847.158 | 647.684 | 510.425 | 414.801 | 339.809 |
| 1 1/2 X 1/8 | 38.1 | 3.175 | Du | 0.758 | 1.925 | 3.415 | 5.321 | 7.638 | 10.421 | 13.572 | 17.189 | 21.225 | 25.675 |
| 1 1/2 X 1/8 | 38.1 | 3.175 | C | 2418.521 | 1725.246 | 1296.392 | 1034.28 | 860.238 | 738.445 | 644.608 | 573.48 | 515.644 | 469.044 |
| 1 1/2 X 1/8 | 38.1 | 3.175 | Dc | 0.614 | 1.53 | 2.731 | 4.254 | 6.111 | 8.331 | 10.877 | 13.766 | 16.996 | 20.519 |
| 1 1/2 X 3/16 | 38.1 | 4.762 | U | 13105.974 | 6954.884 | 3935.326 | 2491.819 | 1726.418 | 1270.738 | 969.386 | 767.502 | 619.76 | 509.822 |
| 1 1/2 X 3/16 | 38.1 | 4.762 | Du | 0.758 | 1.925 | 3.415 | 5.321 | 7.638 | 10.421 | 13.572 | 17.189 | 21.225 | 25.675 |
| 1 1/2 X 3/16 | 38.1 | 4.762 | C | 3629.596 | 2587.243 | 1944.915 | 1550.525 | 1291.377 | 1107.283 | 967.565 | 859.653 | 774.511 | 703.5 |
| 1 1/2 X 3/16 | 38.1 | 4.762 | Dc | 0.614 | 1.53 | 2.731 | 4.254 | 6.111 | 8.331 | 10.877 | 13.766 | 16.996 | 20.519 |
| 1 3/4 X 3/16 | 44.45 | 4.762 | U | 17829.665 | 9468.027 | 5355.562 | 3389.776 | 2349.255 | 1728.661 | 1319.78 | 1041.533 | 844.249 | 694.265 |
| 1 3/4 X 3/16 | 44.45 | 4.762 | Du | 0.653 | 1.653 | 2.923 | 4.549 | 6.552 | 8.927 | 11.652 | 14.746 | 18.2 | 22 |
| 1 3/4 X 3/16 | 44.45 | 4.762 | C | 4937.683 | 3521.84 | 2647.294 | 2110.512 | 1757.68 | 1506.703 | 1317.124 | 1171.122 | 1053.609 | 957.301 |
| 1 3/4 X 3/16 | 44.45 | 4.762 | Dc | 0.516 | 1.308 | 2.341 | 3.639 | 5.246 | 7.128 | 9.322 | 11.794 | 14.561 | 17.584 |
| 2 X 3/16 | 50.8 | 4.762 | U | 23288.861 | 12364.268 | 6996.173 | 4428.285 | 3068.702 | 2257.462 | 1722.676 | 1359.506 | 1103.851 | 908.003 |
| 2 X 3/16 | 50.8 | 4.762 | Du | 0.556 | 1.431 | 2.561 | 3.989 | 5.742 | 7.812 | 10.179 | 12.901 | 15.928 | 19.243 |
| 2 X 3/16 | 50.8 | 4.762 | C | 6448.538 | 4600.619 | 3457.203 | 2756.492 | 2295.329 | 1967.955 | 1719.888 | 1529.778 | 1376.148 | 1249.66 |
| 2 X 3/16 | 50.8 | 4.762 | Dc | 0.451 | 1.159 | 2.044 | 3.186 | 4.584 | 6.242 | 8.157 | 10.318 | 12.742 | 15.389 |
| 2 1/4 X 3/16 | 57.15 | 4.762 | U | 29480.049 | 15648.104 | 8857.16 | 5605.373 | 3883.221 | 2857.309 | 2179.28 | 1723.727 | 1397.63 | 1150.817 |
| 2 1/4 X 3/16 | 57.15 | 4.762 | Du | 0.491 | 1.282 | 2.264 | 3.537 | 5.101 | 6.938 | 9.065 | 11.476 | 14.16 | 17.099 |
| 2 1/4 X 3/16 | 57.15 | 4.762 | C | 8163.232 | 5822.208 | 4376.314 | 3488.465 | 2904.325 | 2491.04 | 2176.977 | 1935.268 | 1741.526 | 1582.197 |
| 2 1/4 X 3/16 | 57.15 | 4.762 | Dc | 0.386 | 1.011 | 1.823 | 2.836 | 4.088 | 5.546 | 7.249 | 9.16 | 11.324 | 13.68 |
| 2 1/2 X 3/16 | 63.5 | 4.762 | U | 36394.835 | 19319.152 | 10933.64 | 6920.104 | 4795.12 | 3528.201 | 2692.063 | 2127.008 | 1723.612 | 1417.826 |
| 2 1/2 X 3/16 | 63.5 | 4.762 | Du | 0.451 | 1.159 | 2.044 | 3.186 | 4.584 | 6.242 | 8.157 | 10.318 | 12.742 | 15.389 |
| 2 1/2 X 3/16 | 63.5 | 4.762 | C | 10078.135 | 7187.862 | 5402.119 | 4307.319 | 3585.688 | 3075.238 | 2687.453 | 2389.431 | 2150.058 | 1953.226 |
| 2 1/2 X 3/16 | 63.5 | 4.762 | Dc | 0.372 | 0.913 | 1.642 | 2.546 | 3.672 | 5.001 | 6.526 | 8.251 | 10.19 | 12.327 |
Cemento Portland Holcim para concreto estructural, firmes y todo tipo de obra, con altas resistencias iniciales y finales.
Medidas y especificaciones
| Producto | Clase | Presentación | Uso |
|---|---|---|---|
| Cemento gris | CPC 40R | Granel / saco 50 kg | Alta resistencia |
| Cemento gris | CPC 30R RS BRA | Granel / saco 50 kg | Resistente a sulfatos |
| Cemento gris | CPC 30R | Saco 50 kg | Uso general |
| Mortero | Cemento-arena | Saco 50 kg | Pega y aplanado |
Sistema Panel Rey de paneles de yeso, plafones y perfilería Perfi Rey para muros y plafones en construcción en seco.
Medidas y especificaciones
| Producto | Espesor | Medida | Tipo |
|---|---|---|---|
| Panel regular | 1/2" | 1.22 x 2.44 m | Interiores |
| Panel resistente humedad | 1/2" | 1.22 x 2.44 m | Baños / cocinas |
| Panel resistente fuego | 5/8" | 1.22 x 2.44 m | Tipo X |
| Panel acústico Soundrey | 12.7 mm | 1.22 x 2.44 m | Aislamiento |
| Poste / canal Perfi Rey | Cal. 26 – 20 | 2.44 / 3.05 m | Estructura |
Catálogo
Mejoramos cualquier cotización
Descarga nuestro catálogo completo y conoce a detalle todos nuestros productos, medidas y especificaciones. Nuestro equipo está listo para brindarte el mejor precio del mercado.
Nosotros
Quiénes somos
Somos una empresa mexicana con más de 10 años de experiencia en la distribución, venta y comercialización de productos de acero y materiales de alta calidad para la industria metalmecánica y de la construcción.
Nuestra base de operaciones y almacén se encuentran al sur de la Ciudad de México. Nuestros productos cumplen satisfactoriamente con los máximos estándares, certificados y normas.
- +10
- Años de experiencia
- 21
- Líneas de producto
- 2
- Sucursales en CDMX
Nuestro equipo
Gerencias
Un equipo comprometido con dar la mejor atención y soluciones a cada cliente.
CCCarlos Chiu
Gerente General
No buscamos culpables, buscamos soluciones. Enfóquense en el cómo sí podemos lograrlo.
Ventas y compras
Departamento comercial
KRKarina Ramírez
Gerente de Compras
Gestión de presupuestos y análisis de mercado.
DEDayra Espinoza
Gerente de Ventas
Liderando con visión, cerrando con precisión.
MBMarco Barrera
Gerente de Ventas
Liderando con visión, cerrando con precisión.
Nuestra misión
Dar la mejor atención al cliente surtiéndole material de alta calidad y duración, para que sus obras se logren con los mejores precios y variedad.
Calidad garantizada
Material de alta calidad y duración que cumple con las normas y certificaciones del sector.
Mejores precios
Mejoramos cualquier cotización con variedad y disponibilidad en cada uno de nuestros productos.
Atención total
Surtimos desde una pieza hasta toneladas, con la mejor atención al cliente en cada obra.
Visítanos
Encuentra tu sucursal más cercana
Consulta nuestra ubicación, horarios y rutas de llegada. Nuestro equipo está listo para atender tus proyectos.
Sucursal 02
Tlalpan
Blvr. Adolfo Ruíz Cortines #5373-1-B, Col. Isidro Fabela, Tlalpan, CDMX
Lunes – Viernes: 07:30 – 18:00
Sábado: 07:30 – 15:00
